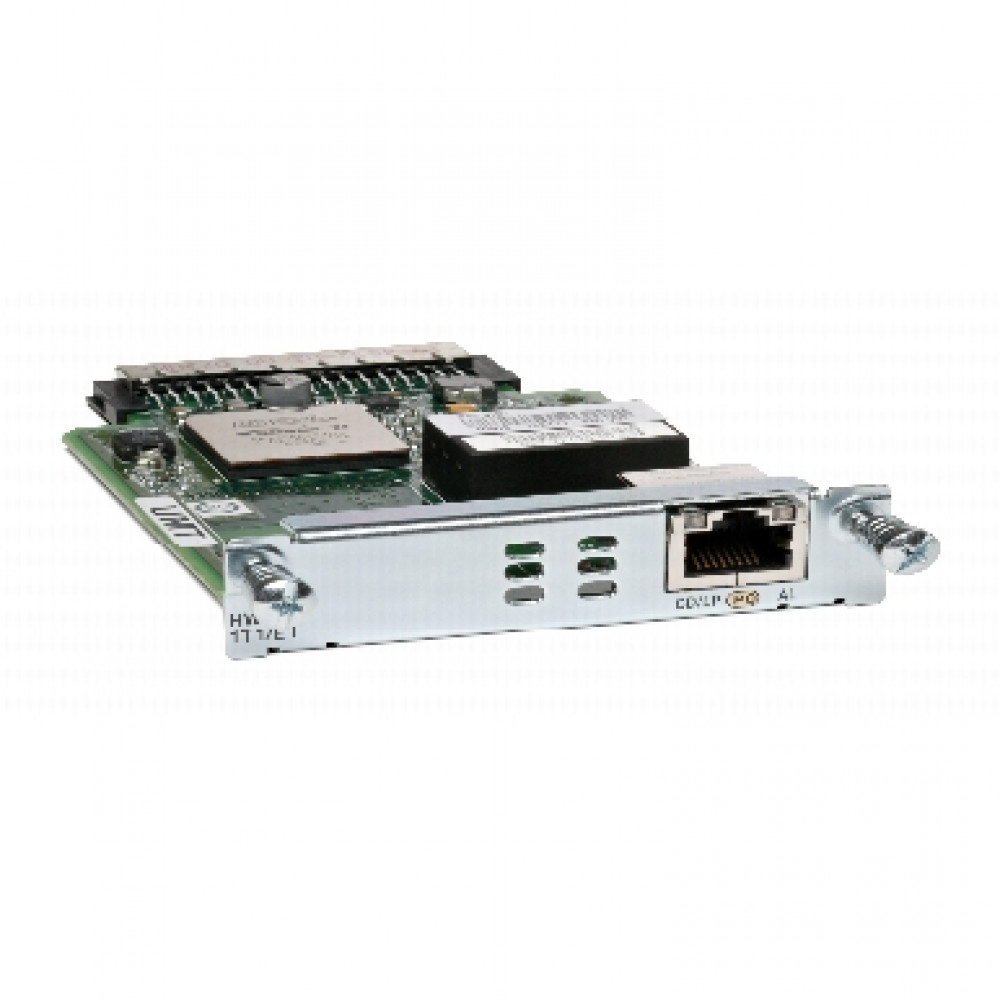

Cisco HWIC-1T1/E1
T1/E1 HWIC w/Intg CSU/DSU (Cisco 1861 only)
In Stock
US $275.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST
Twitter Reddit Facebook
Information
The new Cisco T1/E1 High Speed WAN Interface Card provides fractional or full T1/E1 WAN connectivity services for the Cisco 1861 Integrated Services Router deployed in small and medium-sized businesses (SMBs) and enterprise branch offices.
Specifications
Dimensions
3.1" Width x 4.4" Depth
Management
- CLI
- SNMP
- Supported by Cisco WAN Access Performance Management System (WAPMS)
- Cisco CNS 2100 Series Intelligence Engine (IE2100)
- CiscoWorks
Product Name
T1/E1 High Speed WAN Interface Card
Product Type
HWIC
Shipping Weight
1.5 lb
Interfaces/Ports
1 x T1/E1 WAN
Application/Usage
Wide Area Network
Data Transfer Rate
- 1.54 Mbps T1
- 2.05 Mbps E1
Interfaces Details
1 x RJ-48C T1/E1 WAN
Shipping Dimensions
2.0" Height x 6.0" Width x 7.0" Depth
Additional Information
- Cisco IOS Software configurable for T1 or E1 operation
- Integrated CSU/DSU per port
- Controller remote loopback
- CSU loopback modes for T1 CSU
- Data terminal equipment (DTE) loopback
- Network loopback
