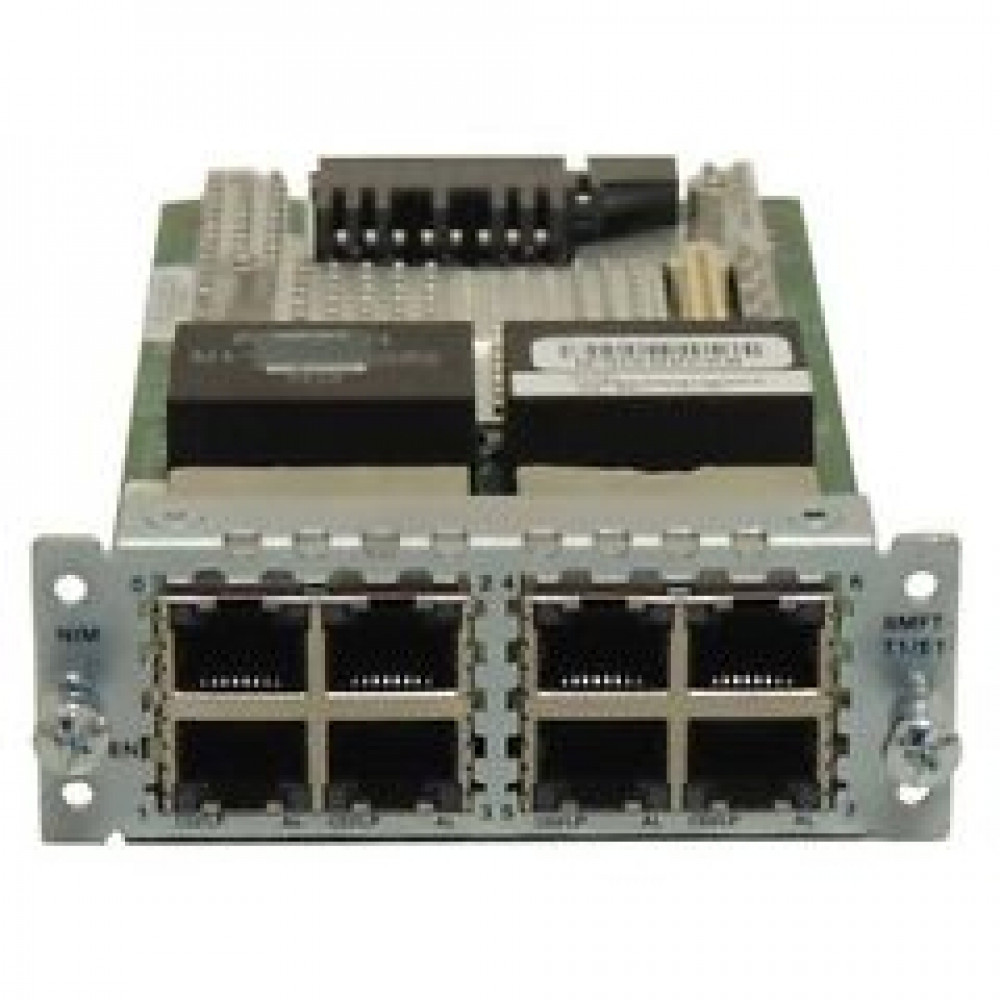

Cisco NIM-8CE1T1-PRI
8 port Multiflex Trunk Voice/Channelized Data T1/E1 Module
In Stock
US $4,950.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 3-4 Days
Twitter Reddit Facebook
Information
The Cisco NIM-8CE1T1-PRI is a network interface module (NIM) designed for use with Cisco Integrated Services Routers (ISRs). It provides connectivity for up to 8 channels of T1 or E1 digital voice or data services. The "PRI" in the name stands for Primary Rate Interface, which refers to the type of digital telephony service it supports. This module allows businesses to connect their ISRs to the public switched telephone network (PSTN) or other digital voice/data networks using T1 or E1 lines.
Specifications
Weight
0.5 lb (0.23 kg)
Dimensions
3.08 x 7.26 x 0.82 in (7.82 x 18.42 x 2.08 cm)
Channelized
No
Voice Support
Yes
Interface Type
E1/T1 PRI
Data Compression
No
Echo Cancellation
Yes
Integrated CSU/DSU
Yes
Jitter Attenuation
Yes
Voice Codec Support
G.711, G.729a, G.729ab, G.726
Fractional T1/E1 Support
No
Power over Ethernet (PoE)
No
Echo Cancellation Coverage
128 ms
Hardware Echo Cancellation
No
Maximum Number of Channels
30
Network Clock Synchronization
Yes
Network Timing Protocol (NTP)
Yes
Comfort Noise Generation (CNG)
Yes
Voice Activity Detection (VAD)
Yes
Voice Quality Monitoring (VQM)
Yes
Network Management Protocol Support
SNMP, Telnet, SSH
