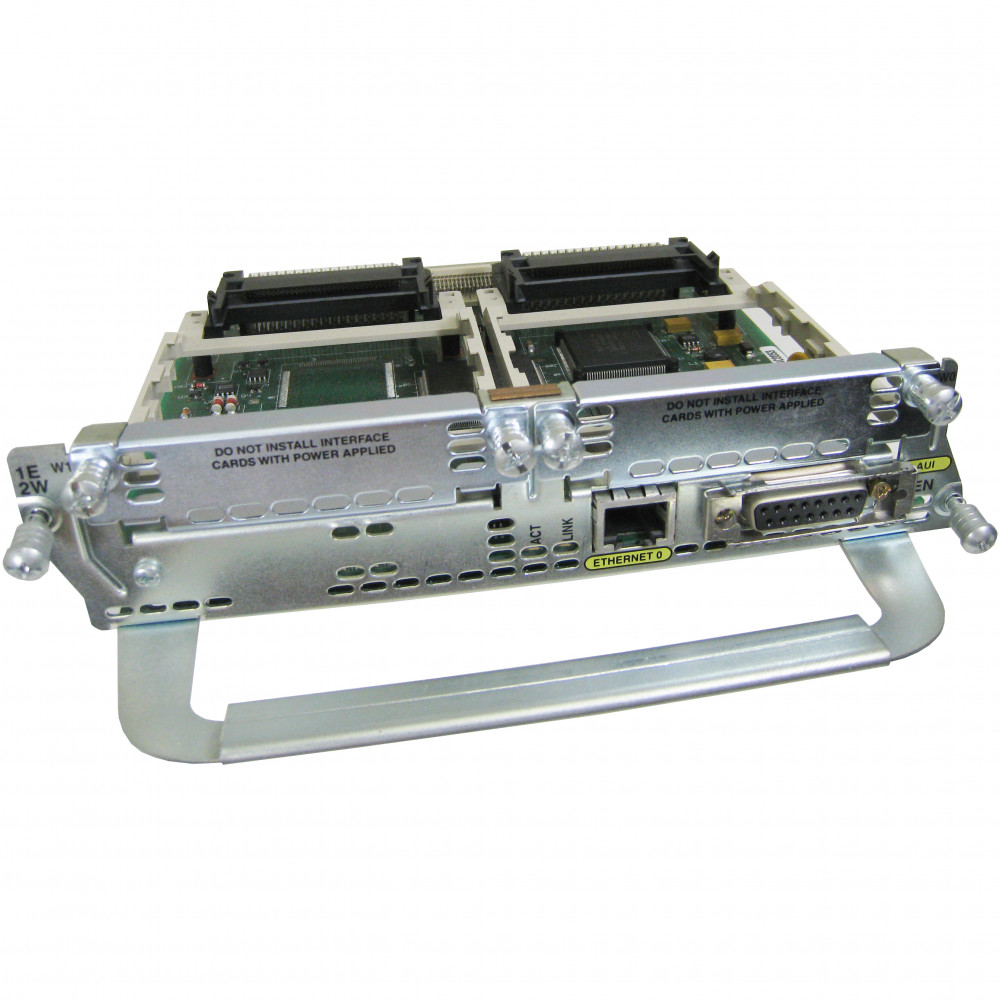

Cisco NM-1E2W
1 Ethernet 2 WAN Card Slot Network Module
In Stock
US $60.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST
Twitter Reddit Facebook
Information
This mixed-media network module has one Ethernet port and two user-configurable WAN Interface Card (WIC) expansion slots. The Ethernet connection is via an Ethernet AUI DB-15 connector or 10BaseT RJ-45 connector. The supported WICs include the 1-port serial (WIC-1T), 1-port ISDN BRI with ST and U interfaces (WIC-1B-S/T, WIC-1B-U), 1-port 56 kbps DSU/CSU (WIC-1DSU-56K4), and 1-port T1/FT1 DSU/CSU (WIC-1DSU-T1).
Specifications
Humidity
5% to 95% Operating
Protocols
VoIP
Dimensions
1.6" Height x 7.1" Width x 7.2" Depth
Temperature
- 32°F (0°C) to 104°F (40°C) Operating
- -13°F (-25°C) to 158°F (70°C) Storage
- -13°F (-25°C) to 158°F (70°C)
Product Name
Network Module
Product Type
Network Module
Compatibility
- 3745 - Not Available
- 3725 - Not Available
- 3660 series - 12.0(5)T
- 3640 - 11.1(7)AA
- 3620 - 11.1(7)AA
- 2691 - Not Available
- 2650 - Not Available
- 2600XM Series - Not Available
- 2600 series - Not Available
- 1720 - Not Available
- 1600 series - Not Available
Expansion Slots
2 x WAN Interface Card (WIC)
Interfaces/Ports
1 x 10Base-T (AUI) LAN
Application/Usage
Data Networking
Status Indicators
- Network module status indicator, status LEDs including send/receive, half/full duplex, and LAN speed indication
Connectivity Media
Twisted Pair 10Base-T
Data Transfer Rate
10 Mbps Ethernet
Interfaces Details
1 x DB-15/RJ-45 10Base-T (AUI) LAN
Weight (Approximate)
2.00 lb Maximum
Certifications & Standards
- Class B EMI
