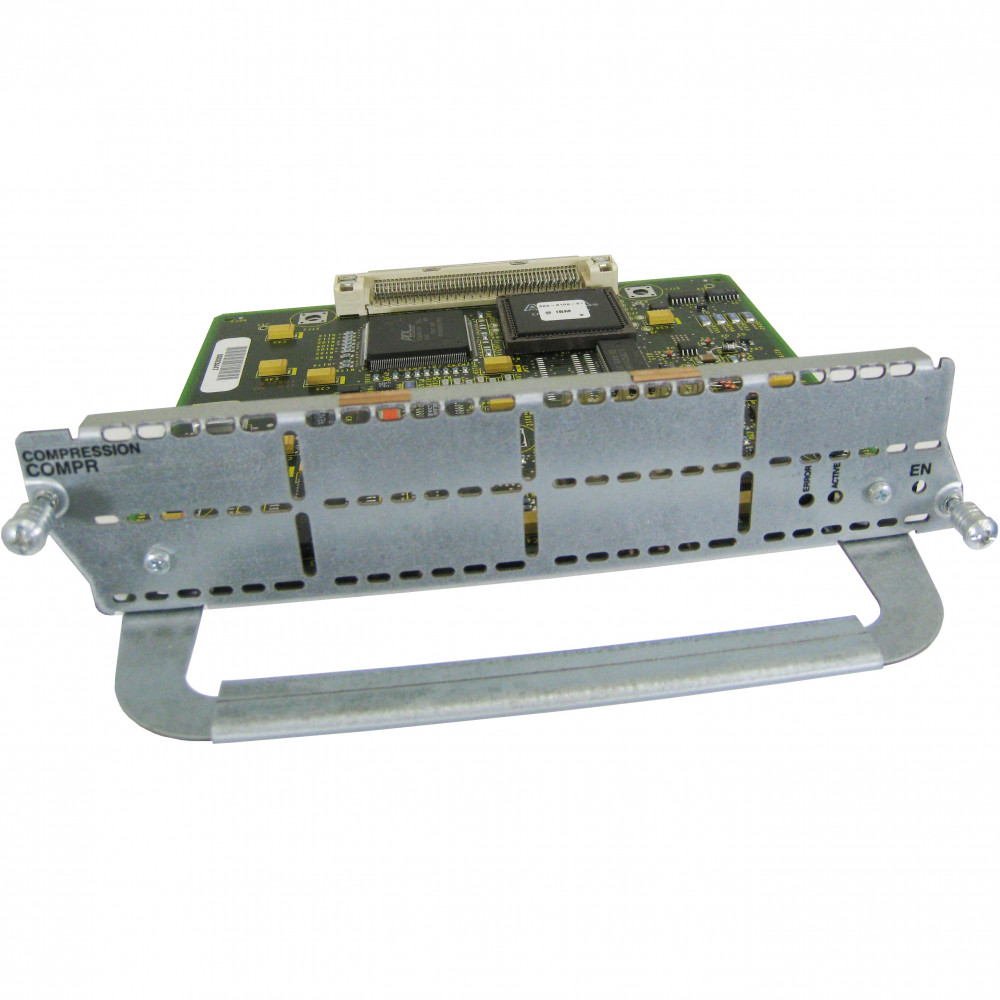

Cisco NM-COMPR
Compression Network Module
In Stock
US $65.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST
Twitter Reddit Facebook
Information
This compression network module supports all serial and channelized/ISDN network modules and WAN interface cards. The coprocessor design, with no external LAN or WAN ports, provides 2E1 full duplex (2 x 2.048 Mbps Full Duplex) of compressed input/output.
Specifications
Weight
3 lb
Product Name
Compression Network Module
Product Type
Network Module
Compatibility
- 3640 - 11.2(7a)P
- 3620 - 11.2(7a)P
- 3640 - 11.2(7a)P
- 3620 - 11.2(7a)P
Interfaces/Ports
Not Applicable
Interfaces Details
Not Applicable
Additional Information
- Supported only over Point-to-Point Protocol (PPP) links
- Supports only the Stacker compression algorithm
- Supports 2 T1/E1 - 4 Mbps fdx (approx. 8 Mbps aggregate) The compression network module supports the following interfaces:
- Channelized T1 Integrated Services Digital Network (ISDN) Primary Rate Interface (PRI)
- Channelized E1 ISDN PRI
- ISDN Basic Rate Interface (BRI)
- Synchronous serial
- Switched 56-kbps data service unit/channel service unit (DSU/CSU)
