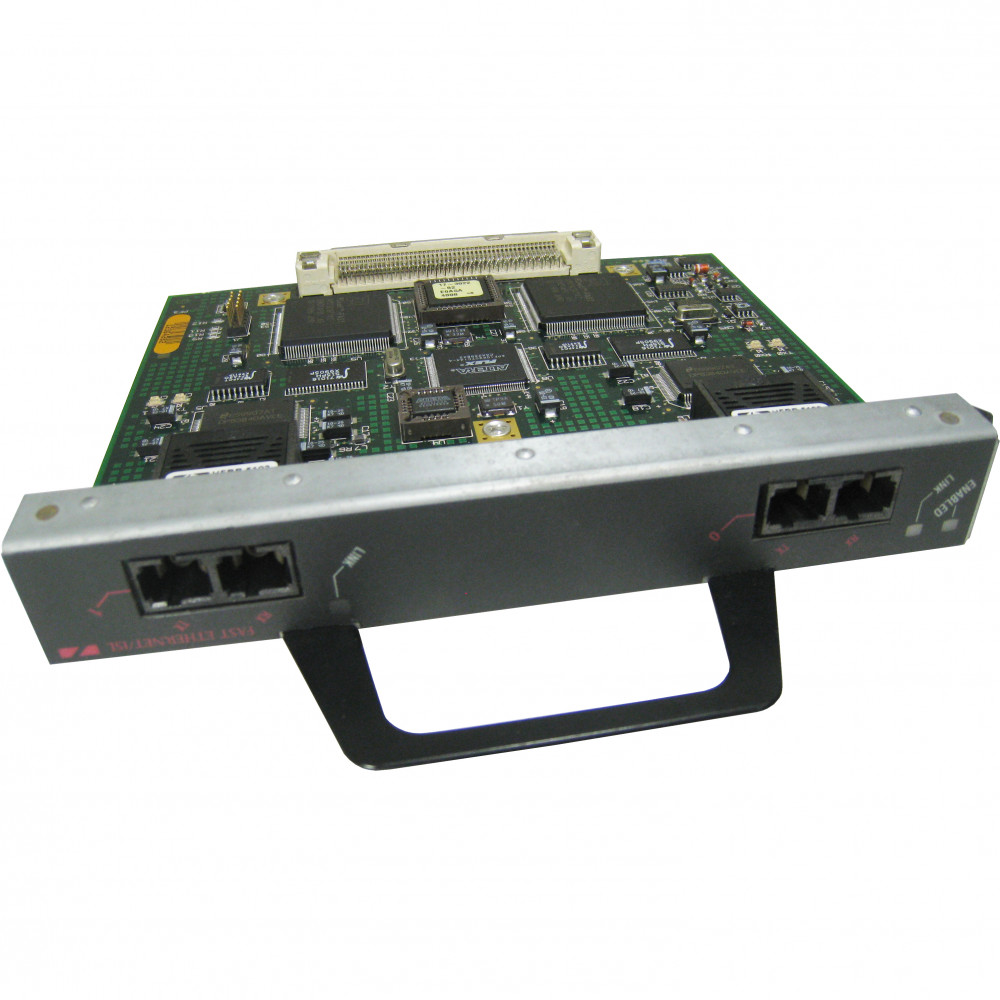

Cisco PA-2FE-FX
2-Port Fast Ethernet 100Base FX Port Adapter
In Stock
US $120.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 2-3 Days
Twitter Reddit Facebook
Information
Cisco System offers Fast Ethernet Port Adapter optimized for the specific requirements of campus and enterprise backbones and data centers. The Cisco FE port-adapter options provides two ports of 100BaseFX (fiber) Fast Ethernet ports. Each port can be configured for half- and full-duplex operation.
Specifications
Dimensions
1.0" Height x 6.5" Width x 6.0" Depth
Management
- SNMP
- Ethernet MIB
- MIB-II
- 802.1d Spanning-Tree MIB
- IEEE 802.3 LAN specification for carrier sense multiple access collision detect (CSMA/CD)
Product Name
Fast Ethernet Port Adapter
Product Type
Port Adapter
Compatibility
- Cisco 7200 Series Routers
- Cisco 7300 Series Routers
- Cisco 7500 Series Routers
- Cisco 7600 Series Routers
Shipping Weight
1.0 lb
Interfaces/Ports
2 x 100Base-FX
Application/Usage
Data Networking
Connectivity Media
62.5/125 µm Multi-mode Fiber
Data Transfer Rate
100 Mbps Fast Ethernet
Interfaces Details
2 x SC Female 100Base-FX Auto-negotiation
Weight (Approximate)
1.00 lb
Additional Information
- Wavelength: 1300 nanometers
- Transmit output power: -16 to -12 dBm
- Receiver sensitivity: -31 to -11 dBm
- Online insertion and removal (OIR)
- Power consumption: 15 watts
- Thermal dissipation: 51 Btu/hr
- ISL support for high-performance routing between multiple Ethernet VLANs
