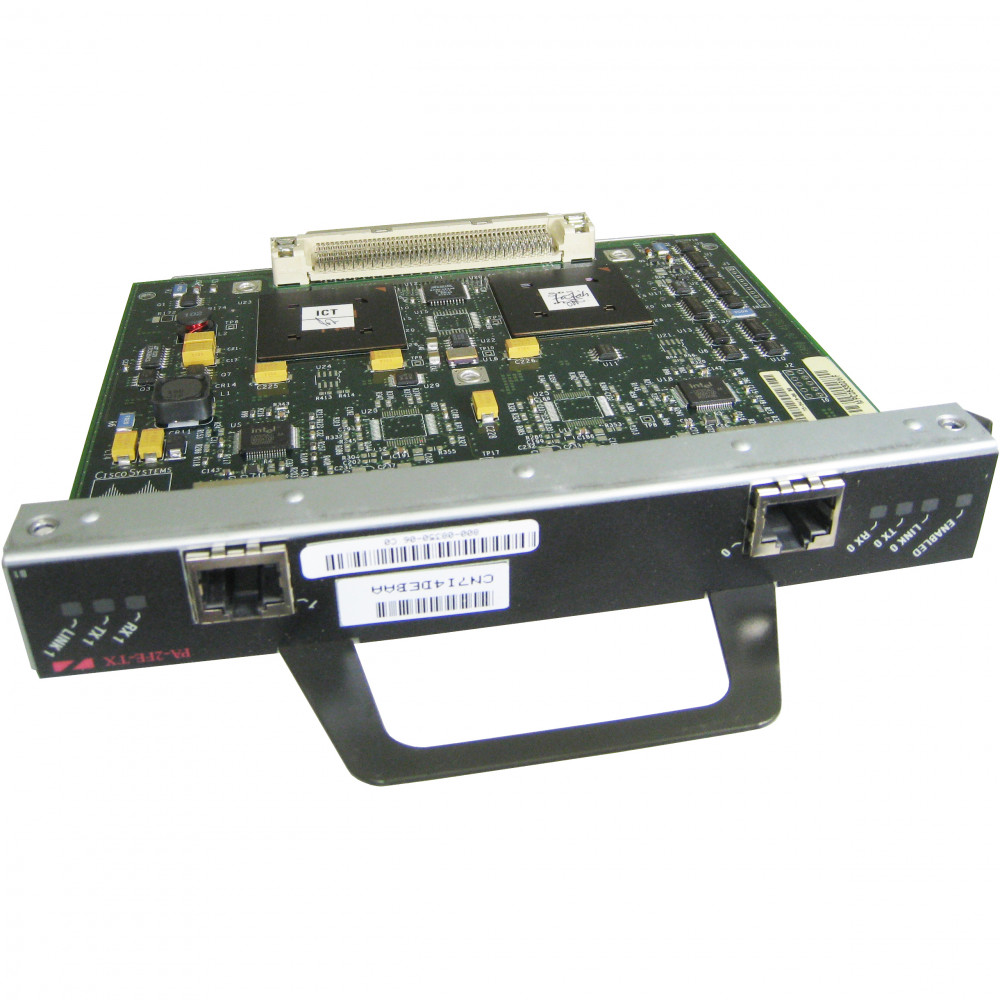

Cisco PA-2FE-TX
2-Port Fast Ethernet 100Base TX Port Adapter
In Stock
US $55.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 2-3 Days
Twitter Reddit Facebook
Information
The PA-2FE-TX provides two 10/100-Mbps, 10/100BASE-T Fast Ethernet/Inter-Switch Link (ISL) interfaces and supports both full-duplex and half-duplex operations.
Specifications
Humidity
10% to 90% Non-condensing Relative Humidity
Protocols
- SNMP
- ISL
Dimensions
1.0" Height x 6.5" Width x 6.0" Depth
Temperature
- -4°F (-20°C) to 149°F (65°C) Storage
- 32°F (0°C) to 104°F (40°C) Operating
Product Name
PA-2FE-TX Fast Ethernet Port Adapter
Product Type
Port Adapter
Compatibility
- Cisco 7100 Series Routers
- Cisco 7200 Series Routers
- Cisco uBR7200 Series Routers
- Cisco 7200 VXR Routers
- Cisco 7201 Router
- Cisco 7301 Router
- Cisco 7304 PCI Port Adapter Carrier Card in the Cisco 7304 Router
- Cisco 7401ASR Router
- VIP in the Cisco 7500 Series Routers
Shipping Weight
2.0 lb
Interfaces/Ports
2 x 10/100Base-TX LAN
Application/Usage
Data Networking
Power Consumption
15 W
Status Indicators
- ENABLED
- LINK0
- TX0
- RX0
- RX1
- TX1
- LINK1
Connectivity Media
Category 5 UTP 10/100Base-TX
Data Transfer Rate
- 100 Mbps Fast Ethernet Half/Full-duplex
- 10 Mbps Ethernet Half/Full-duplex
Distance Supported
328.08 ft Category 5 UTP Full-duplex
Interfaces Details
2 x RJ-45 10/100Base-TX LAN
Weight (Approximate)
15.87 oz
Additional Information
- Thermal dissipation: 51 Btu/hr
- Signaling method: 4B/5B block coded, scrambled, with MLT-3 line coding
- Topology: Star/hub
Certifications & Standards
- IEEE 802.3
- IEEE 802.3u
- EIA/TIA-568 or EIA-TIA-568 TSB-36 compliant Safety Certifications: UL 1950IEC 60950CSA C22.2 No. 950EN60950TS001AS/NZS 3260EN 60825IEC 6082521CFR 1040 Electromagnetic Emissions Certifications: CFR 47, Part 15, Class ACISPR-22 Class AEN55022A Class BVCCI Class BCE MarkingICES 003 Class AAS/NZS3548 Class AEN 55024EN 50082-1ETS 300-386
- UL 1950
- IEC 60950
- CSA C22.2 No. 950
- EN60950
- TS001
- AS/NZS 3260
- EN 60825
- IEC 60825
- 21CFR 1040
- CFR 47, Part 15, Class A
- CISPR-22 Class A
- EN55022A Class B
- VCCI Class B
- CE Marking
- ICES 003 Class A
- AS/NZS3548 Class A
- EN 55024
- EN 50082-1
- ETS 300-386
