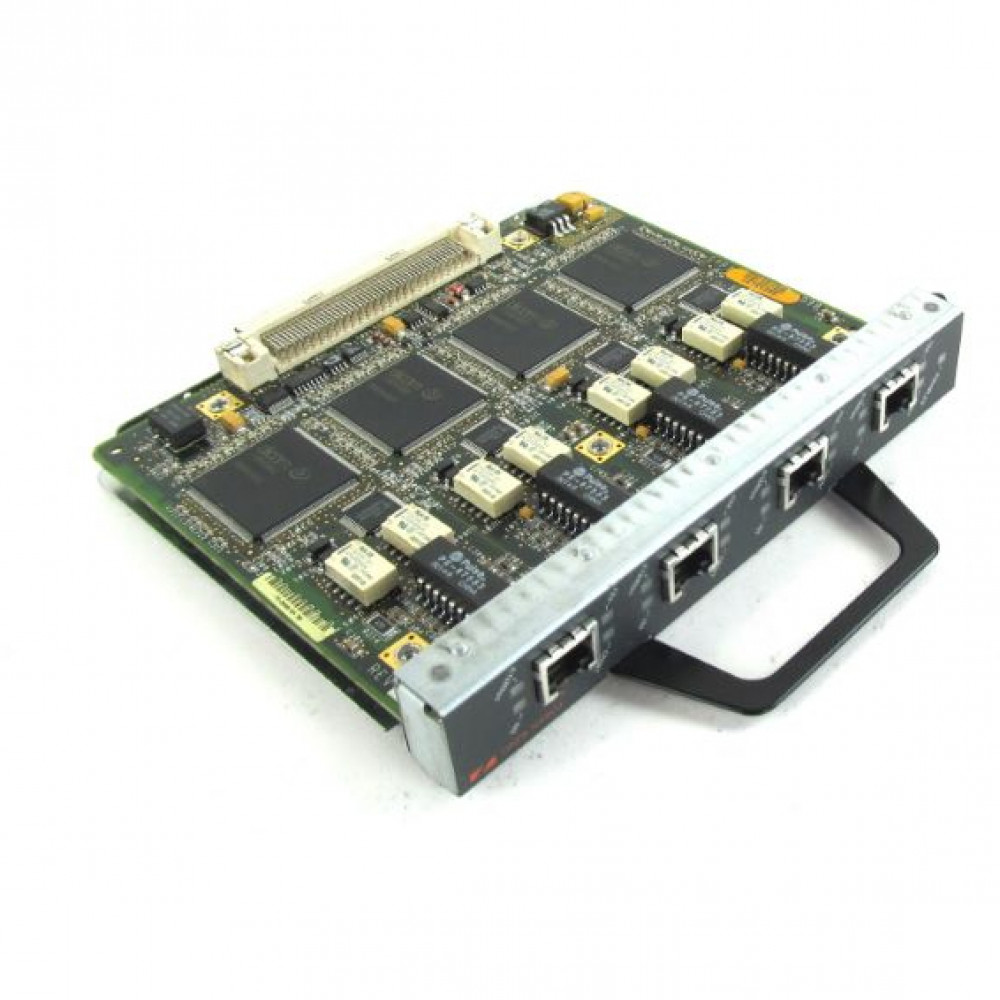

Cisco PA-4R-DTR
Port Adapter:4-Port Dedicated Token Ring, 4/16Mbps, HDX/FDX
In Stock
US $195.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 2-3 Days
Twitter Reddit Facebook
Information
The Dedicated Token Ring port adapter offers increased functionality, flexibility, and performance for Token Ring networks at a very attractive price per port. The new port adapter offers a broad range of connectivity options, from traditional 4 and 16 Mbps half-duplex Token Rings to direct attachment of high-speed, full-duplex devices such as servers and switches.
Specifications
Management
- IEEE 802.5 Token Ring MIB
- SNMP Agent V1
Form Factor
Hot-swappable
Product Name
Dedicated Token Ring Port Adapter
Product Type
Port Adapter
Compatibility
- Cisco 7200 Series
- Cisco 7500 Series
Shipping Weight
1.65 lb
Interfaces/Ports
4 x Token Ring LAN
Application/Usage
Data Networking
Connectivity Media
- 150 ohm STP Token Ring
- 100 ohm UTP Token Ring
Data Transfer Rate
- 4 Mbps Token Ring Half/Full-duplex
- 16 Mbps Token Ring Half/Full-duplex
Interfaces Details
4 x RJ-45 Token Ring LAN
Additional Information
- Configurable in Token Ring concentrator mode for direct attachment of servers, switches, and stations
- Increased bridging and routing performance
