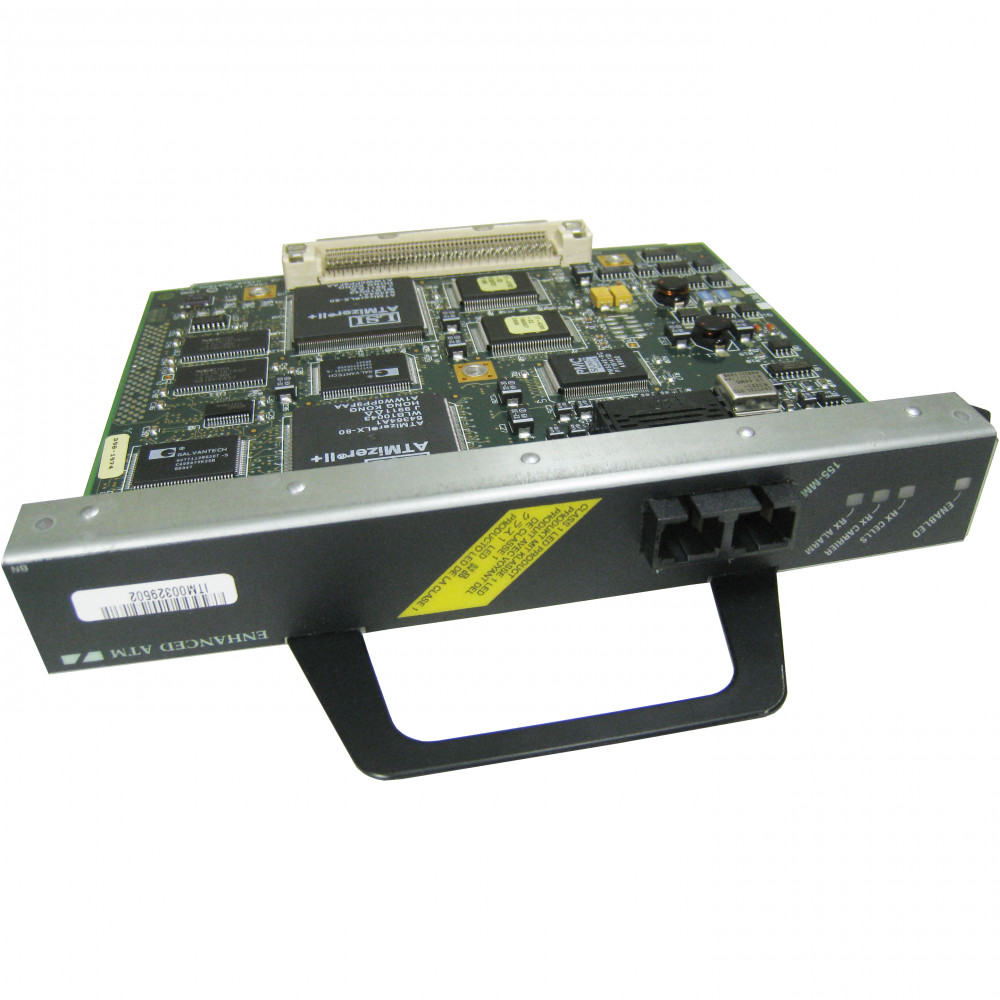

Cisco PA-A3-OC3MM
1-Port ATM Enhanced OC3c/STM1 Multimode Port Adapter
In Stock
US $90.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 3-4 Days
Twitter Reddit Facebook
Information
The ATM Enhanced OC-3c/ST-1 Port Adapter is an enhanced asynchronous transfer mode (ATM) port adapter and has single port, single and dual wide ATM port adapter. It is designed with a high performance, dual segmentation and reassembly (SAR) architecture with local buffer memory. It combines high performance and a wide array of new ATM features that are ideal for both enterprise wide area network and service provider backbone applications
Specifications
Management
- SONET
- MIB II
- AToM MIB
- ATM ILMI MIB
- LAN Emulation (LANE) MIB
Product Name
ATM Enhanced OC-3c/ST-1 Port Adapter
Product Type
Port Adapter
Compatibility
- Cisco 7500 series with VIP4-50
- Cisco 7500 series with VIP4-80
- Cisco 7500 series with VIP2-40 and VIP2-50
- FlexWAN module for the Cisco Catalyst 6000 family
- Cisco 7200 and 7200VXR series with NPE 150, 175, 200, 225, 300, 400, or NSE-1 series router
Interfaces/Ports
1 x OC-3c/STM-1
Application/Usage
Data Networking
Connectivity Media
62.5/125 µm Multi-mode Fiber
Data Transfer Rate
155.52 Mbps OC-3c/STM-1
Interfaces Details
1 x SC OC-3c/STM-1
Additional Information
- Wavelength: 1270 to 1380 nm
- IETF RFC 2684 support for multiple protocol encapsulations over ATM
- IETF RFC 2364 and 2516 for PPP over ATM
- IETF RFC 1577 support for classical IP and ARP over ATM
- ATM service classes: UBR, UBR+, VBR-nrt, ABR
- Supports AAL5 ATM adaptation layer for data services
- Supports AAL2 ATM adaptation layer for voice services
- Up to 4096 simultaneous virtual circuits (VCs)
- Layer 2 per-VC and per-VP queuing and traffic shaping
