Cisco PA-A6-E3
1Port Enh ATM E3 Port Adapter
In Stock
US $395.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 3-4 Days
Twitter Reddit Facebook
Information

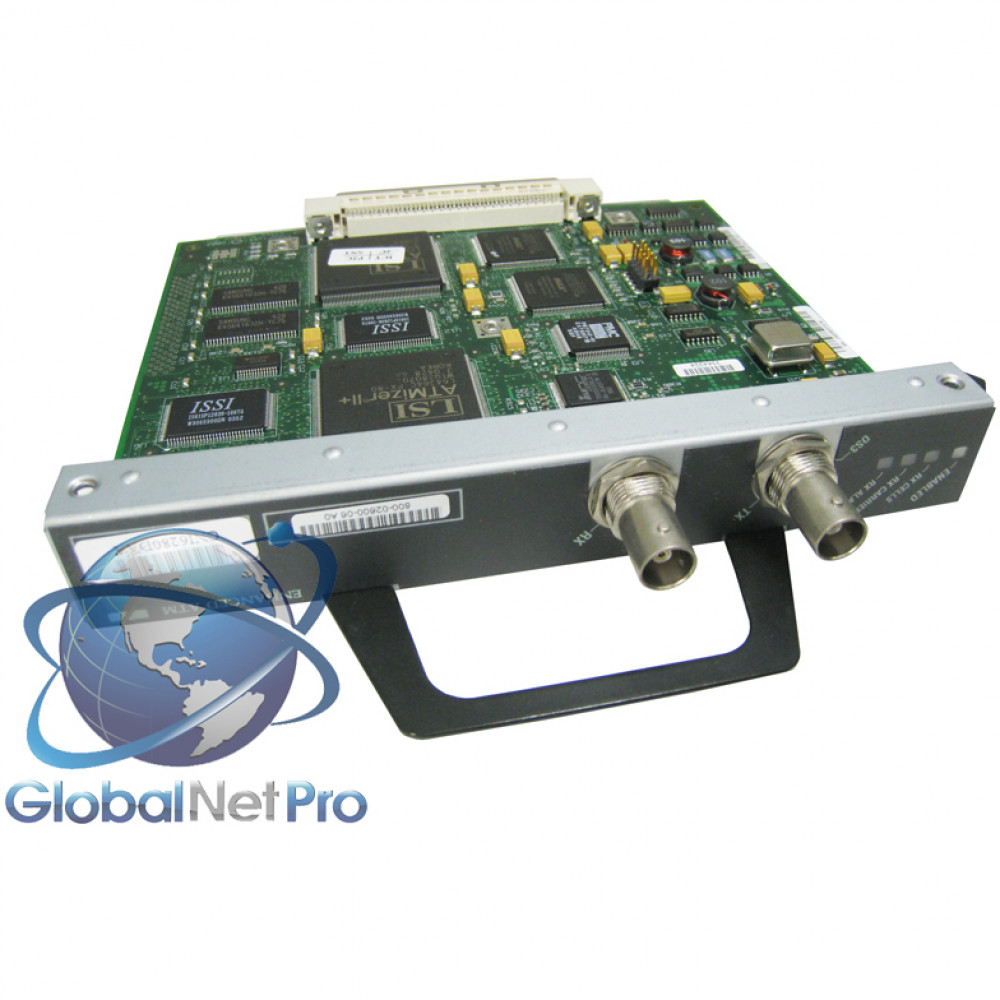

The 1-Port ATM E3 Port Adapter is single-width, single-port, ATM port adapter for the Cisco 7200 series router, Cisco 7200VXR series router, Cisco 7301 router, Cisco 7401ASR routers, Cisco 7500 series routers, and Cisco 7600 series routers with FlexWAN. With advanced ATM features, the PA-A6 supports broadband aggregation, WAN aggregation, and campus/MAN aggregation.
Specifications
Humidity
0% to 90% Non-condensing
Management
- MIB II
- Synchronous Optical Network (SONET) MIB
- AToM MIB
- ATM ILMI MIB
- LANE MIB
- DS3/E3 MIB
Temperature
10 degrees C (50.0 degrees F) to 40 degrees C (104.0 degrees F) Operating
Product Name
One-port ATM E3 Port Adapter
Product Type
Port Adapter
Compatibility
- Cisco 7200 series router
- Cisco 7200VXR series router
- Cisco 7301 router
- Cisco 7401ASR routers
- Cisco 7500 series routers using VIP4-50 and VIP4-80
- Cisco 7600 series routers using FlexWAN modules
Distance Support
1250 ft Coaxial
Interfaces/Ports
1 x E3 WAN
Status Indicators
- RF CELLS
- RX CARRIER
- RX ALARM
Connectivity Media
75-ohm Coaxial
Data Transfer Rate
34.368Mbps E3
Interfaces Details
1 x BNC Duplex Connector E3 WAN
Additional Information
- Up to 8191 simultaneously available virtual circuits (VCs)
- Up to 2000 simultaneous segmentations and reassemblies (SARs)
- ATM adaptation layer 5 (AAL5) for data traffic
- Full available bit rate (ABR) support (Traffic Management 4.0), all modes
- Traffic shaping per VC rates from 2.3 kbps to 155 Mbps, in 2.3-kbps increments
