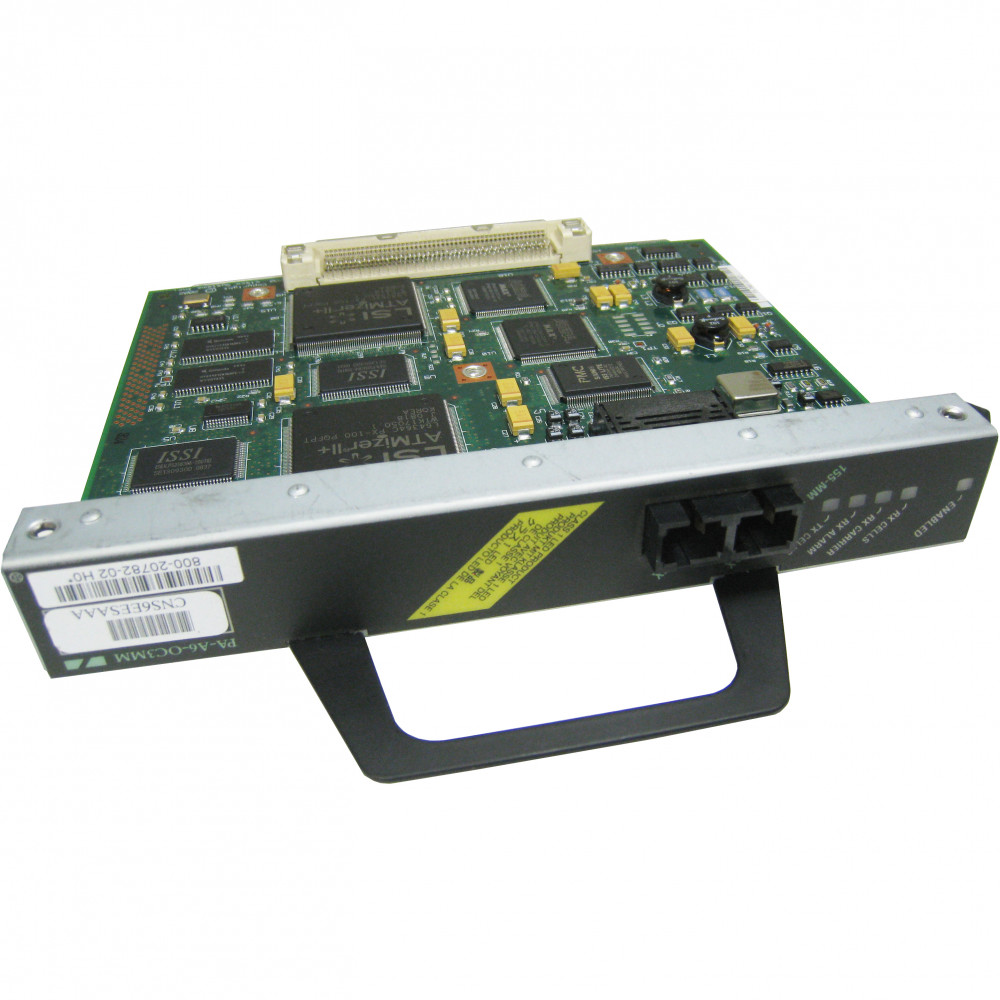

Cisco PA-A6-OC3MM
1 Port Enh ATM OC3c/STM1 Multimode Port Adapter
In Stock
US $250.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 3-4 Days
Twitter Reddit Facebook
Information
This Cisco OC-3c/STM-1 Enhanced ATM Port Adapter supports advanced ATM hardware features such as per-virtual circuit and per-virtual path traffic shaping, as well as all ATM service classes such as real-time variable bit rate (VBR-rt), constant bit rate (CBR), non-real-time variable bit rate (VBR-nrt), available bit rate (ABR), and unspecified bit rate (UBR). It also supports 8191 ATM virtual circuits.
Specifications
Management
- MIB II
- Synchronous Optical Network (SONET) MIB
- AToM MIB
- ATM ILMI MIB
- LANE MIB
- DS3/E3 MIB
- MIB II
- Synchronous Optical Network (SONET) MIB
- AToM MIB
- ATM ILMI MIB
- LANE MIB
- DS3/E3 MIB
Product Name
One-port ATM OC-3c/STM-1 Multimode Port Adapter
Product Type
Port Adapter
Compatibility
- Cisco 7200 series router
- Cisco 7200VXR series router
- Cisco 7301 router
- Cisco 7401ASR routers
- Cisco 7500 series routers using VIP4-50 and VIP4-80
- Cisco 7600 series routers using FlexWAN modules
- Cisco 7200 series router
- Cisco 7200VXR series router
- Cisco 7301 router
- Cisco 7401ASR routers
- Cisco 7500 series routers using VIP4-50 and VIP4-80
- Cisco 7600 series routers using FlexWAN modules
Distance Support
2 km Multi-mode Fiber
Interfaces/Ports
1 x OC-3c/STM-1
Status Indicators
- ENABLED
- RX CELLS
- RX CARRIER
- RX ALARM
- TX CELLS
- ENABLED
- RX CELLS
- RX CARRIER
- RX ALARM
- TX CELLS
Connectivity Media
65.5/125 micron Multi-mode Fiber
Data Transfer Rate
155.52Mbps OC-3c/STM-1
Interfaces Details
1 x SC Duplex Connector OC-3c/STM-1
Additional Information
- Wavelength: 1310 nm
- Up to 8191 simultaneously available virtual circuits (VCs)
- Up to 2000 simultaneous segmentations and reassemblies (SARs)
- ATM adaptation layer 5 (AAL5) for data traffic
- Full available bit rate (ABR) support (Traffic Management 4.0), all modes
- Traffic shaping per VC rates from 2.3 kbps to 155 Mbps, in 2.3-kbps increments
- Wavelength: 1310 nm
- Up to 8191 simultaneously available virtual circuits (VCs)
- Up to 2000 simultaneous segmentations and reassemblies (SARs)
- ATM adaptation layer 5 (AAL5) for data traffic
- Full available bit rate (ABR) support (Traffic Management 4.0), all modes
- Traffic shaping per VC rates from 2.3 kbps to 155 Mbps, in 2.3-kbps increments
Environmental Conditions
- Temperature 10 degrees C (50.0 degrees F) to 40 degrees C (104.0 degrees F) Operating
- Humidity: 0% to 90% Non-condensing
Certifications & Standards
- UL 1950 (3rd Ed.)
- CSA C22.2 No. 950-95
- EN60950 (1992 including Amendments 1-4 and 11)
- CE Marking
- IEC 950 (2nd Ed. including Amendments 1-4)
- AS/NZS3260 (1993 including Amendments 1-4)
- EMI
- FCC Part 15 Class A
- ICES-003 Class A
- VCCI Class B
- EN55022 Class B
- CISPR22 Class B
- AS/NZS3548 Class B
- FDA Class 1 laser
