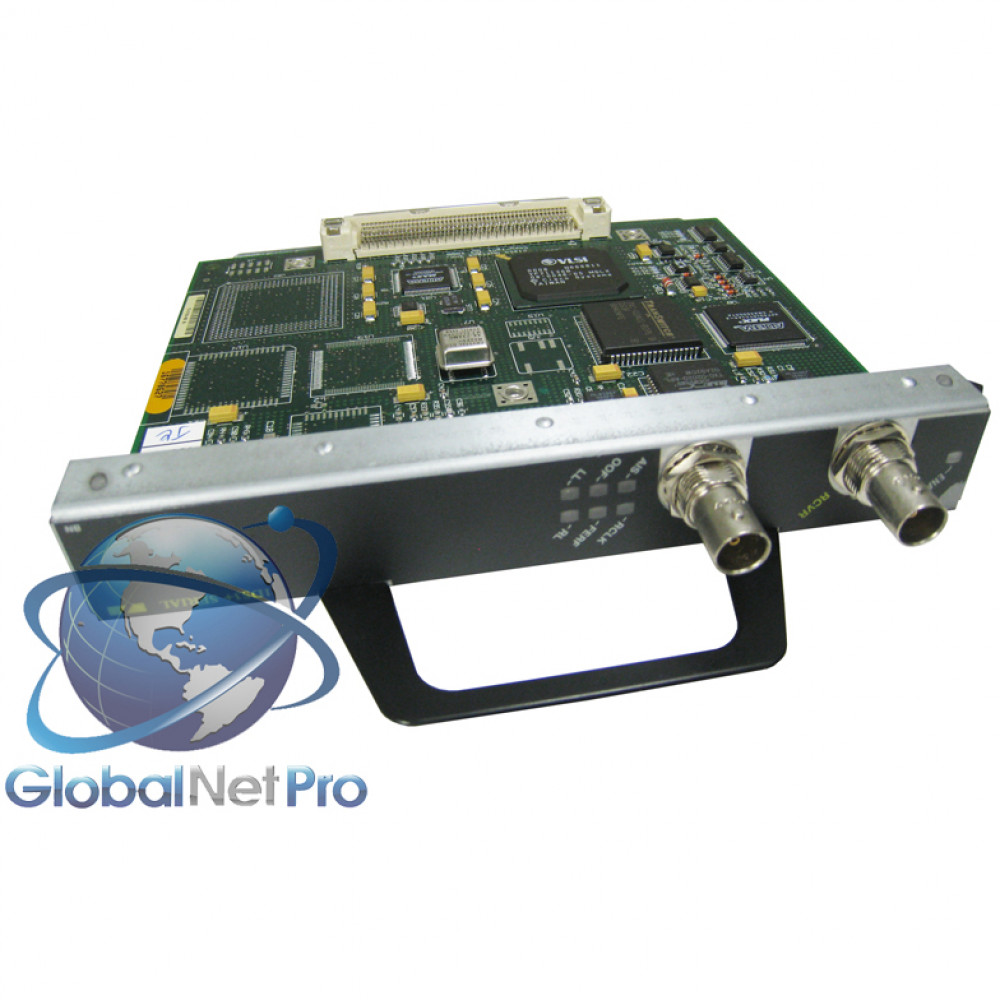

Cisco PA-E3
1 Port E3 Serial Port Adapter with E3 DSU
In Stock
US $295.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 3-4 Days
Twitter Reddit Facebook
Information
Cisco's Packet-over-E3 Port Adapter Module offers high density, highly manageable E3 line termination. Demand for high capacity corporate backbones, high speed access to the global Internet, and trunking connections for service provider internetworking has led to growth in clear channel E3 connections that has out paced all other types and speeds of leased lines. This growth has placed tremendous strains on the abilities of service providers and network managers to provision and manage new E3 connections. With integrated line interface units data service units (DSUs) that allow E3 lines to be directly terminated on a Cisco router, the Cisco Packet-over-E3 Port Adapter Module simplify E3 line management, reduce provisioning cost, and free valuable rack space.
Specifications
Humidity
10% to 90% Non-condensing Relative Humidity
Management
- Remote and local loopback support
- 24-hour history maintained for error statistics and failure counts
- E3 alarm/event detection (once per second polling)
Temperature
-20 degrees C (-4.0 degrees F) to 65 degrees C (149.0 degrees F) Storage
Product Name
One-port Clear-Channel E3 Port Adapter
Product Type
Port Adapter
Compatibility
- CISCO 7200 SERIES ROUTER
- CISCO 7301 SERIES ROUTER
- CISCO 7304 SERIES ROUTER
- CISCO 7500 SERIES ROUTER
- CISCO 7600 SERIES ROUTER
Distance Support
442.91 ft Coaxial
Interfaces/Ports
1 x E3
Status Indicators
- RCLK LED (Green) to indicate the port has detected a receive clock signal
- AIS LED (Yellow) to indicate the port is receiving an AIS
- OOF LED (Yellow) to indicate the port is in a receive OOF state
- FERF LED (Yellow) to indicate the port is receiving a FERF
- Local Loop (Yellow) to indicate E3 port looped locally
- Remote Loop (Yellow) to indicate the far-end E3 port is looped
Connectivity Media
Coaxial
Data Transfer Rate
34Mbps E3 Half/Full-duplex
Interfaces Details
1 x BNC Duplex Connector E3
System Requirements
Occupies one port adapter bay on any VIP2 model or one port adapter slot in any Cisco 7200 series router
Additional Information
- HDB3 line coding
- 16- and 32-bit cycles redundancy check (CRC) supported. (16-bit CRC default)
- HDLC: High-Level Data Link Control
- PPP: Point-to-Point Protocol
- Frame Relay
- ATM-DXI: ATM Data Exchange Interface
- HDB3 line coding
Temperature (Operating)
0 degrees C (32.0 degrees F) to 40 degrees C (104.0 degrees F)
