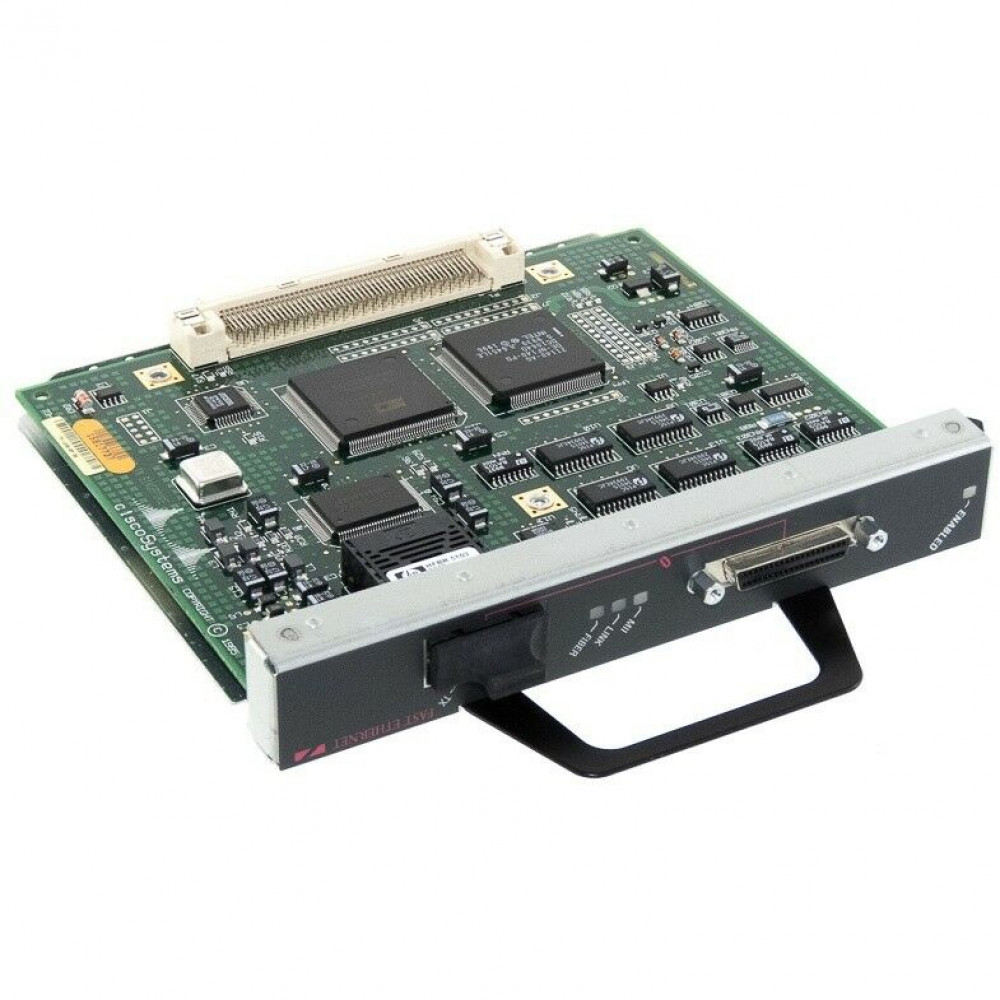

Cisco PA-FE-FX
1-Port Fast Ethernet 100BaseFx Port Adapter
In Stock
US $75.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST
Twitter Reddit Facebook
Information
Cisco System offers Fast Ethernet Port Adapter optimized for the specific requirements of campus and enterprise backbones and data centers. The Cisco FE port-adapter options provides one port of 100BaseFX (fiber) Fast Ethernet port. Port can be configured for half- and full-duplex operation.
Specifications
Dimensions
1.0" Height x 6.5" Width x 6.0" Depth
Management
- SNMP
- Ethernet MIB
- MIB-II
- 802.1d Spanning-Tree MIB
- IEEE 802.3 LAN specification for carrier sense multiple access collision detect (CSMA/CD)
Product Name
Fast Ethernet Port Adapter
Product Type
Port Adapter
Compatibility
- Cisco 7200 Series Routers
- Cisco 7300 Series Routers
- Cisco 7500 Series Routers
- Cisco 7600 Series Routers
Interfaces/Ports
1 x 100Base-FX
Application/Usage
Data Networking
Connectivity Media
62.5/125 µm Multi-mode Fiber
Data Transfer Rate
100 Mbps Fast Ethernet
Interfaces Details
1 x SC 100Base-FX
Weight (Approximate)
1.00 lb
Additional Information
- Wavelength: 1300 nanometers
- Transmit output power: -16 to -12 dBm
- Receiver sensitivity: -31 to -11 dBm
- Online insertion and removal (OIR)
- Power consumption: 15 watts
- Thermal dissipation: 51 Btu/hr
- ISL support for high-performance routing between multiple Ethernet VLANs
