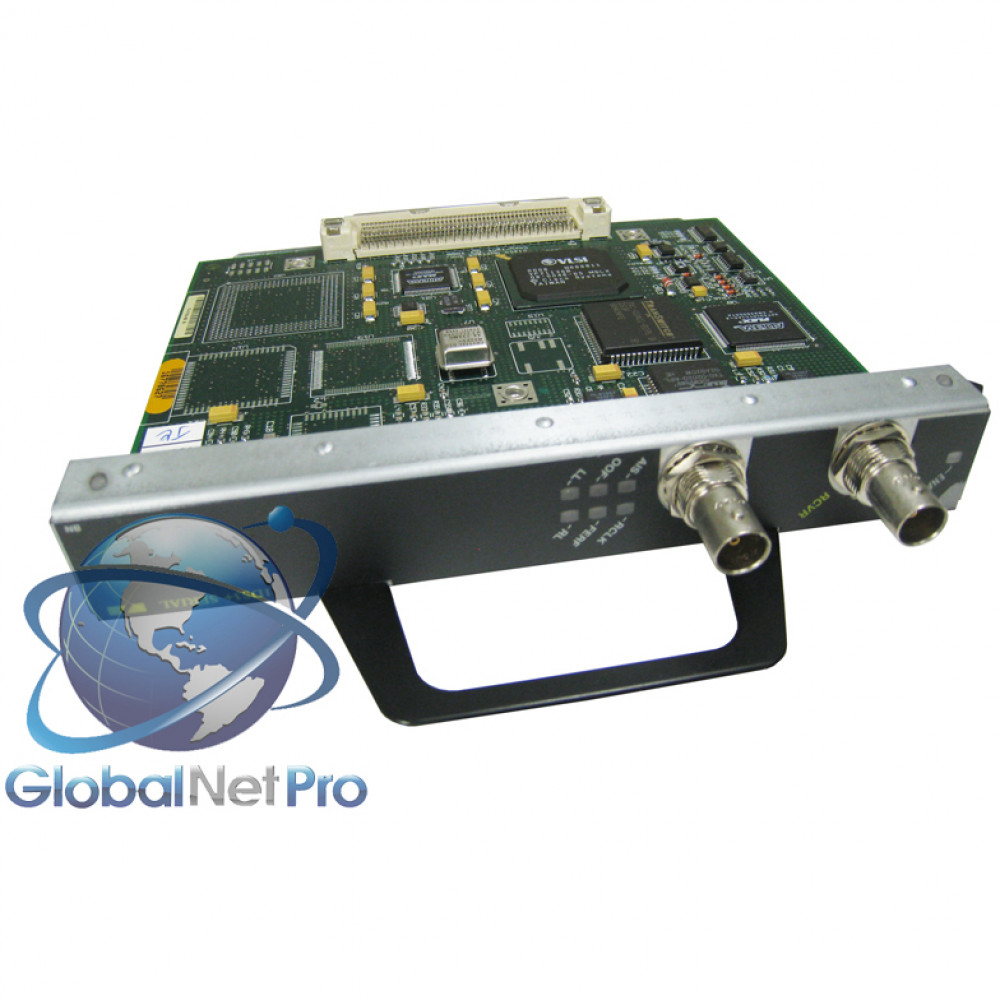

Cisco PA-MC-E3
1 port Multi-Channel E3 port adapter
In Stock
US $195.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 3-4 Days
Twitter Reddit Facebook
Information
The 1-port Multichannel E3 Port Adapter divides the E3 signal stream into four multi-channel E2 data channels and then into 16 E1 lines. The E3 is designed to comply with the CCITT/ITU G.703 physical layer standard. E3 provides access to services at E3 (34.368 Mbps) data rates, transferring data bidirectionally.
Specifications
Management
SNMP
Product Name
1-port Multichannel E3 Port Adapter
Product Type
Port Adapter
Compatibility
- Cisco 7200 Routers
- Cisco 7500 Routers
Interfaces/Ports
1 x E3
Application/Usage
Data Networking
Connectivity Media
75-ohm Coaxial
Data Transfer Rate
34.37 Mbps E3
Interfaces Details
1 x BNC E3
Additional Information
- 16 E1 ports multiplexed onto a single E3 connection
- ISDN D-channel support via VIP/NPE
- Line Code: HDB3 (High Density Bipolar 3)
- Pulse Shape: Conforms to G.703
