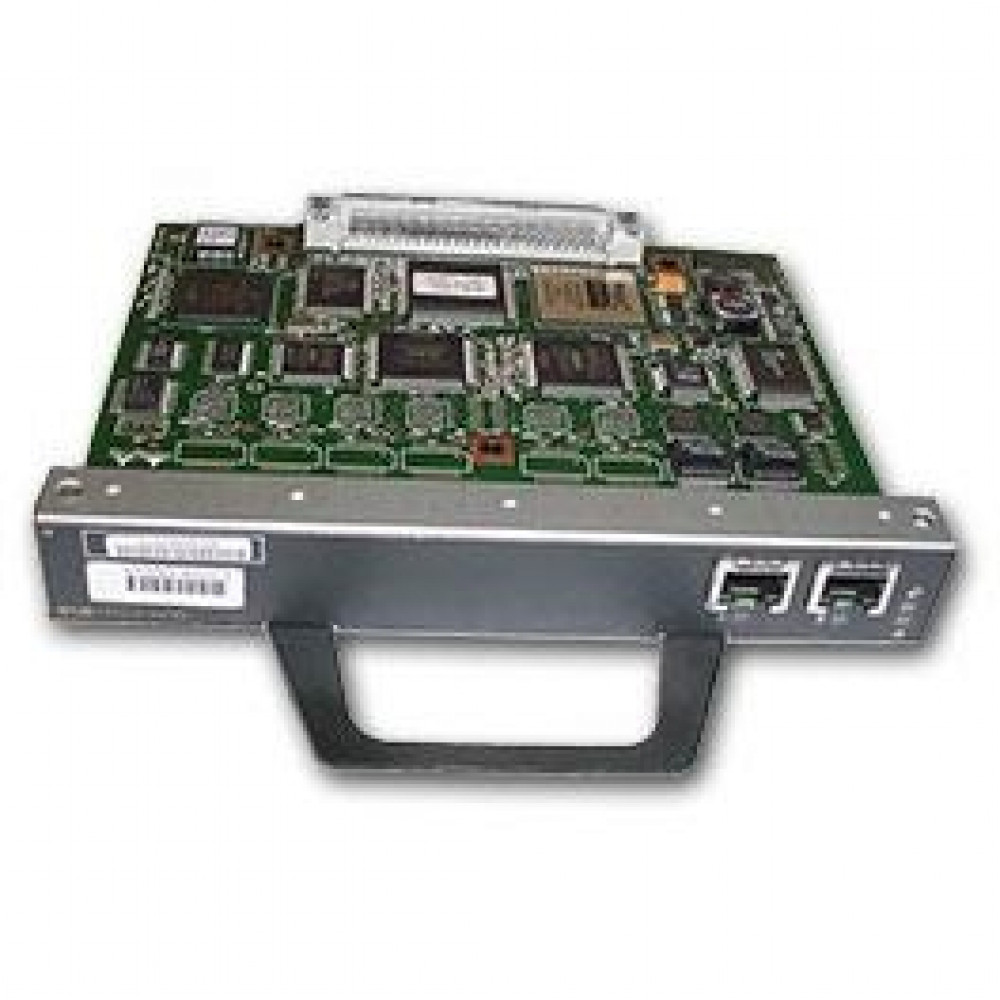

Cisco PA-MCX-2TE1
2 port MIX-enabled multichannel T1/E1 with CSU/DSU
In Stock
US $395.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 3-4 Days
Twitter Reddit Facebook
Information
The Cisco multiservice interchange (MIX) enabled T1/E1 Port adapter for the Cisco 7200 VXR series routers provide high-capacity, large-scale voice and data aggregation across wan interfaces, and interconnection to private branch exchanges (PBXs) and the Public Switched Telephone Network (PSTN).
Specifications
Management
- Simple Network Management Protocol (SNMP) compliant
- Manageable via a MIB browser
- CiscoView interface for configuration
- Cisco Voice Manager (CVM) supported
- Netsys supported
- Software-configurable ring-cadence and call-progress tones
Product Name
2-port MIX multichannel T1/E1 Port Adapter
Product Type
Port Adapter
Compatibility
Cisco 7200 VXR series routers
Interfaces/Ports
2 x T1/E1
Application/Usage
Data Networking
Connectivity Media
- 100 ohm Twisted Pair T1
- 120-ohm Twisted Pair E1
Data Transfer Rate
- 1.54 Mbps T1
- 2.05 Mbps E1
Interfaces Details
2 x RJ-48C T1/E1
Additional Information
- Signaling Supported:
- T1 CAS (robbed-bit signaling)
- E1 CAS-R2
- PRI (user and network side)
- Transparent CCS
- Q.SIG
- FG-D
- Multi-D channel T1 Features:
- D4 Super Frame (SF) and Extended Superframe (ESF) framing
- Alternate-mark-inversion (AMI) or binary-8-zero-substitution (B8ZS) line encoding
- Full facility-data-link (FDL) support and FDL performance monitoring
- Selectable DSX-1 cable length in increments from 0 to 655 feet
- Selectable DS1 CSU line build-out: 0, -7.5, -15, and -22.5 dB
- Selectable DS1 CSU receiver gain: 26 or 36 dB
- DS0 drop and insert E1 Features:
- Software-configurable E1 national bits
- HDB3, AMI encoding
- CRC4 and non-CRC4 framing
- DS0 drop and insert
