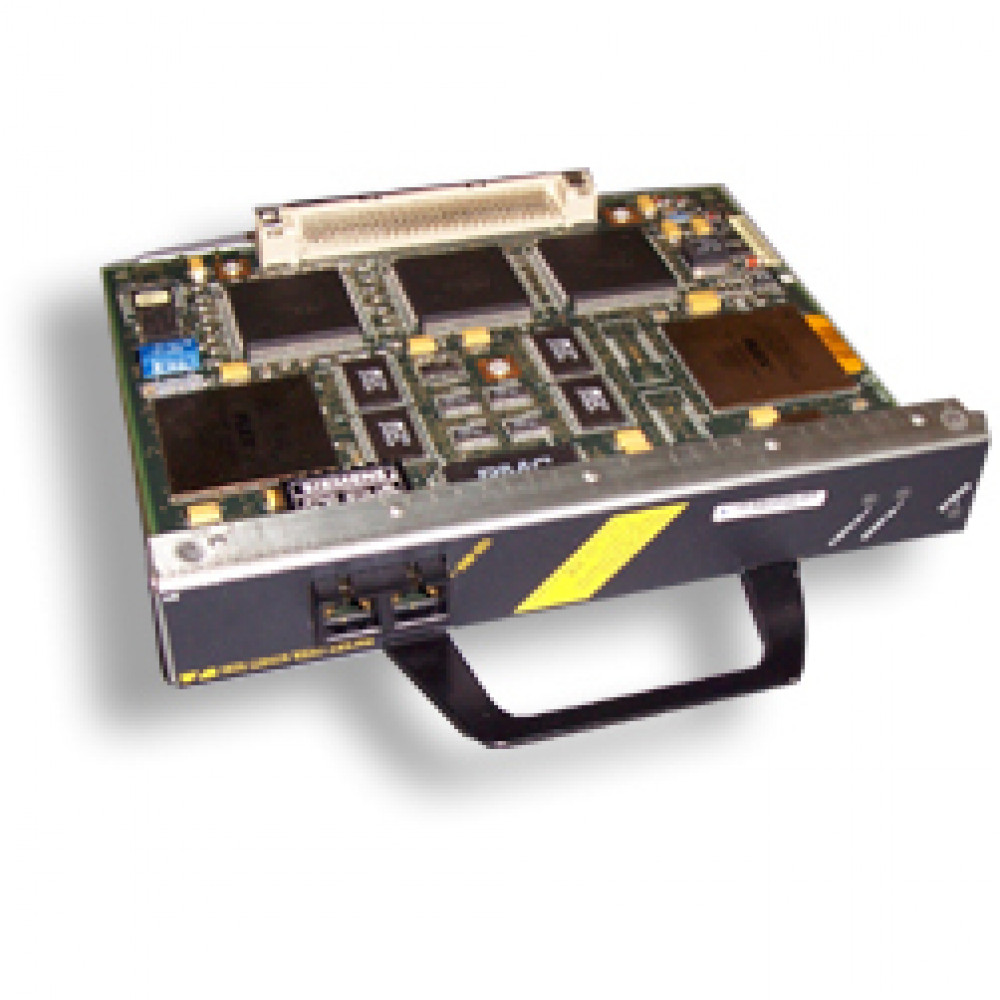

Cisco PA-POS-OC3MM
1-Port Packet/SONET OC3c/STM1 Multimode Port Adapter
In Stock
US $125.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 3-4 Days
Twitter Reddit Facebook
Information
The PA-POS-OC3 interface provides a direct connection between the supported router or switch platform and external networks
Specifications
Management
- SNMP agent v1 (RFC 1155-1157)
- MIB II (RFC 1213); POS MIB support is available with Cisco IOS Release 12.0
Product Name
Multimode Port Adapter
Product Type
Port Adapter
Compatibility
- Catalyst RSM/VIP2
- Catalyst 6000 Family FlexWAN Module
- Cisco 7100 Series Routers
- Cisco 7200 Series and Cisco uBR7200 Series Routers
- Cisco 7301 Router
- Cisco 7304 PCI Port Adapter Carrier Card
- Cisco 7401ASR Router
- VIP Interface
Interfaces/Ports
1 x STS-3c/STM-1 WAN
Application/Usage
Data Networking
Status Indicators
- ENABLED
- RX CARRIER
- RX PACKETS
Connectivity Media
62.5/125 µm Multi-mode Fiber STS-3c/SDH STM-1
Data Transfer Rate
155 Mbps STS-3c/STM-1
Interfaces Details
1 x SC Duplex STS-3c/SDH STM-1 Full-duplex WAN
Additional Information
- Use one duplex SC-type cable or two simplex SC-type cables , one for transmit (TX) and one for receive (RX).
Certifications & Standards
- PPP, RFC 1548
- PPP in HDLC Framing, RFC 1662
- PPP Over SONET/SDH, RFC1619
- ANSI T1.105
- ANSI T1.105.02
- ITU-T G.707
