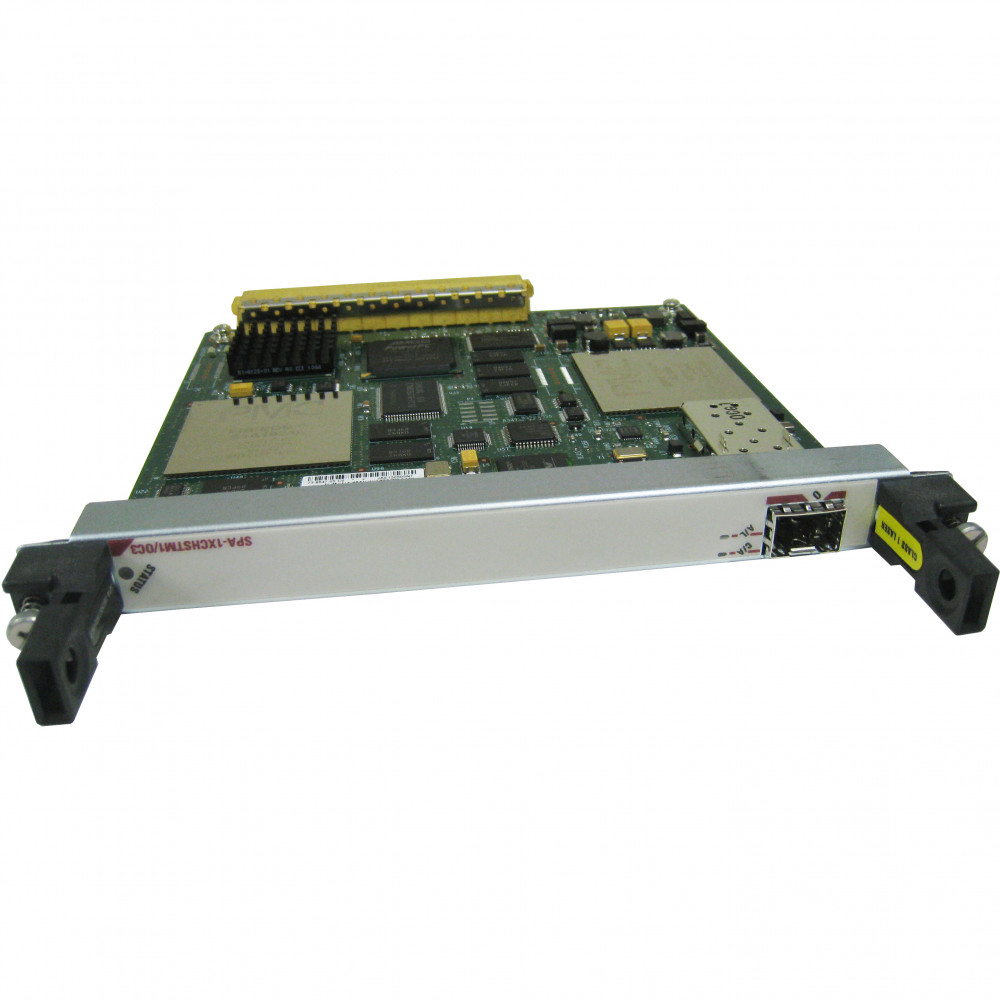

Cisco SPA-1CHSTM1/OC3V2
1-port Channelized STM-1/OC-3c to DS0 Shared Port Adapter
In Stock
US $4,500.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 2-3 Days
Twitter Reddit Facebook
Information
The Cisco SPA-1CHSTM1/OC3V2 is a single-port channelized STM-1/OC-3c line card for the Cisco 7600 Series routers. It provides a high-density, cost-effective solution for delivering high-speed data, voice, and video services over SONET/SDH networks. The line card supports channelized STM-1/OC-3c interfaces, allowing the user to divide the bandwidth into multiple independent channels for different applications. It is commonly used in service provider networks to connect to customer premises equipment or to interconnect different network elements.
Specifications
Weight
Single-Width SPA: 0.5 lb (0.23 kg)
Dimensions
Single-Width SPA: 6.875 x 7.25 x 0.8 in. (17.46 x 18.42 x 2.03 cm)
Hot Swappable
Yes
Interface Type
STM-1/OC-3
Full-Duplex Support
Yes
Jumbo Frame Support
No
MAC Address Table Size
Not Applicable
Auto-Negotiation Support
No
Layer 2 Protocol Support
PPP, HDLC
Layer 3 Protocol Support
IPv4, IPv6
Maximum Data Transfer Rate
155.52 Mbps
Quality of Service (QoS) Support
Yes
Power over Ethernet (PoE) Support
No
