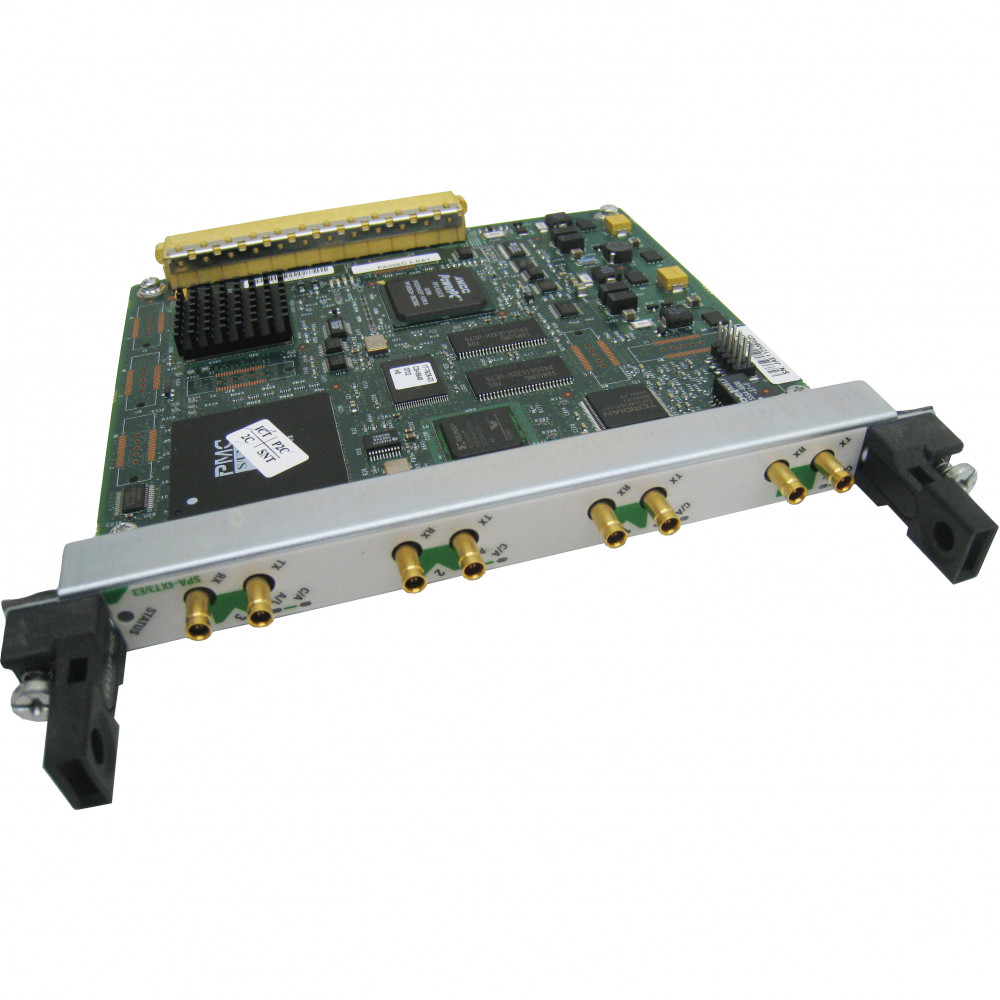

Cisco SPA-4XT3/E3
4-port Clear Channel T3/E3 Shared Port Adapter
In Stock
US $100.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST
Twitter Reddit Facebook
Information
The Cisco Clear Channel T3/E3 Shared Port Adapter provides an extensible design that enables service prioritization for voice, video and data services. Enterprise and service provider customers can take advantage of improved slot economics resulting from modular port adapters that are interchangeable across Cisco routing platforms. The I-Flex design maximizes connectivity options and offers superior service intelligence through programmable interface processors that deliver line rate performance.
Specifications
Dimensions
0.8" Height x 6.8" Width x 7.3" Depth
Management
SNMP
Product Name
Clear Channel T3/E3 Shared Port Adapter
Product Type
Shared Port Adapter
Interfaces/Ports
4 x T3/E3
Application/Usage
Data Networking
Connectivity Media
75-ohm Twisted Pair
Data Transfer Rate
- 43 Mbps T3 Full-duplex
- 34 Mbps E3 Full-duplex
Interfaces Details
4 x BNC T3/E3
Weight (Approximate)
12.00 oz
Additional Information
- 1.0/2.3 RF connector (75-ohm impedance)
- 1.0/2.3 RF to BNC adapter cable option
- C-bit or M23 framing
- Binary 3-zero substitution (B3ZS) line coding
- T3 far-end alarm and control (FEAC) channel support
- Compliant with E3 pulse mask
- 16- and 32-bit cyclic redundancy check (CRC), 16-bit default
- Bit-error-rate-testing (BERT) pattern generation and detection per channel
- Up to 4 independent T3 or E3 ports configurable as either all T3 or all E3 only
- Interoperability with all Cisco T3/E3-capable products and from other leading T3/E3 DSU and Frame Relay equipment vendors
