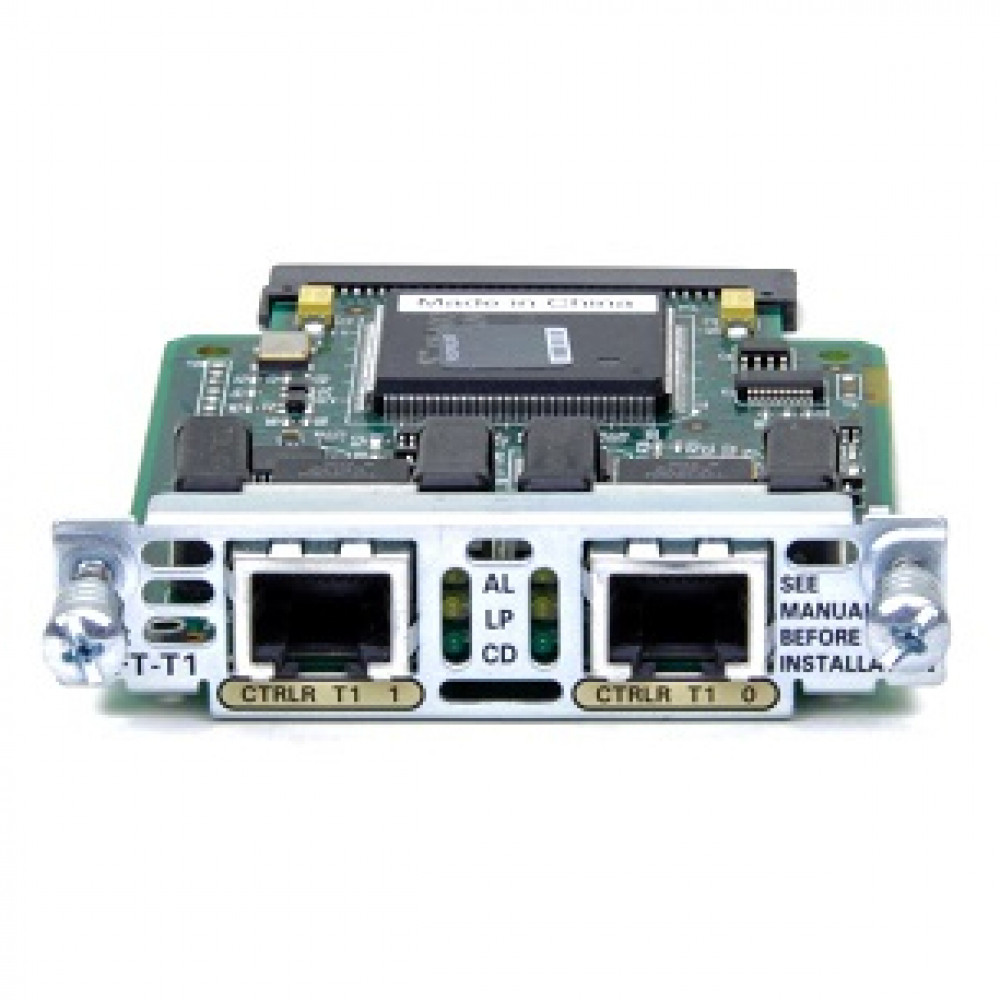

Cisco VWIC-2MFT-T1-DIR
Dual T1/Fract Multiflex Trk w/ CSU/DSU, D/I, Prot Relays
In Stock
US $75.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 2-3 Days
Twitter Reddit Facebook
Information
The Cisco VWIC-2MFT-T1-DIR Voice/WAN Interface Card supports data applications on the Cisco MWR 1941-DC Mobile Wireless Edge Router for T1 networks. This card is a dual-port, T1/Fractional T1, Drop and Insert Multiplexer with integrated T1 CSU/DSUs. The T1 version supports framed and unframed traffic. Each VWIC supports a limited channelized capability where the T1 or E1 can be flexibly split into two fractional channel groups, one on each port or two on one port. The switching operation can be maintained through router restarts and reloads of Cisco IOS software.
Specifications
Product Name
VWIC-2MFT-T1-DIR 2-Port Voice/WAN Interface Card
Product Type
Voice/WAN Interface Card
Compatibility
Cisco MWR 1941-DC Mobile Wireless Edge Router
Interfaces/Ports
2 x T1 WAN
Application/Usage
Voice
Connectivity Media
Twisted Pair T1
Data Transfer Rate
1.54 Mbps T1
Interfaces Details
2 x RJ-48C T1 Network WAN
Additional Information
Each card also features protection switch solid state relays on the line interfaces, which together with redundancy logic and relay control added in a Cisco IOS feature set on the MWR 1941-DC router, can be used to provide T1/E1 Protection Switching between redundant routers in applicable implementations.
