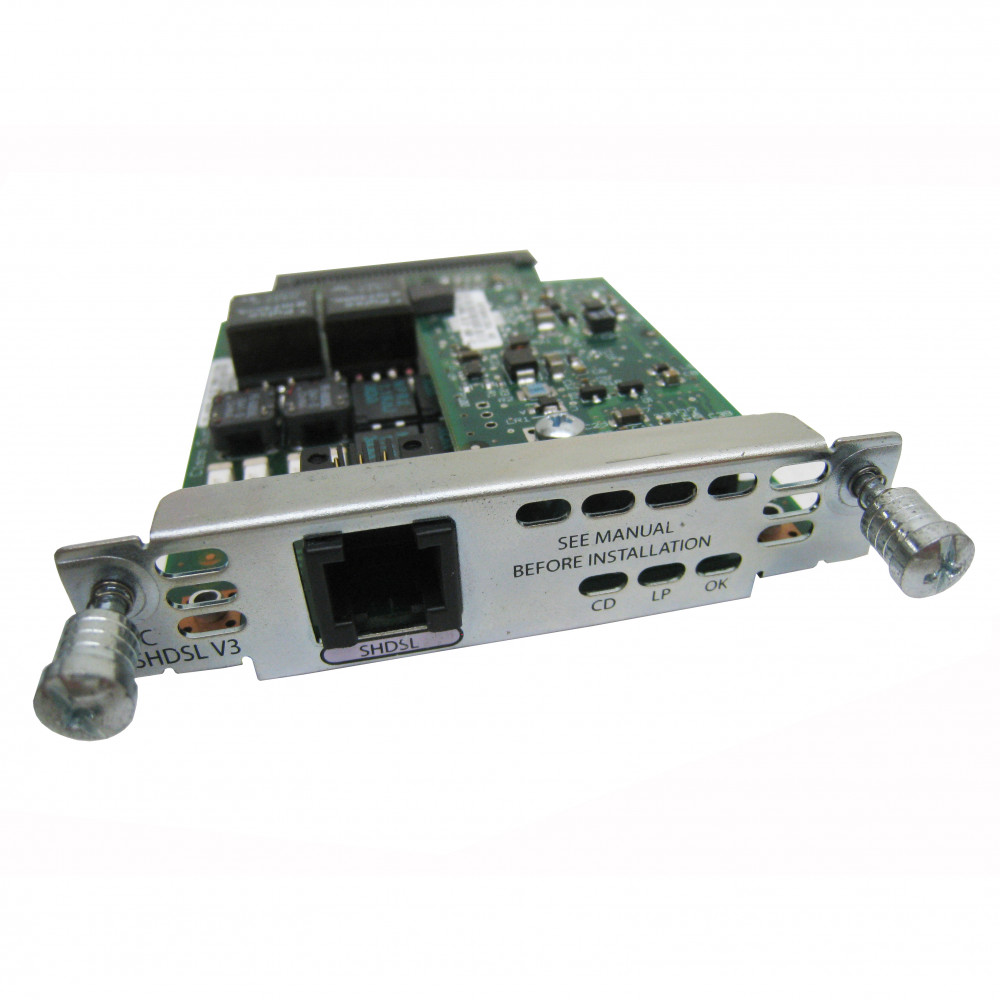

Cisco WIC-1SHDSL-V2
1-Port G.SHDSL WIC with Four Wire Support
In Stock
US $60.00
Product Highlights
Family
Modules
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST
Twitter Reddit Facebook
Information
The Cisco WIC-1SHDSL-V2 is a Wide Interface Card (WIC) module designed for Cisco routers. It provides a single-pair high-bit-rate DSL (SHDSL) interface, allowing for high-speed data transmission over existing copper telephone lines. The WIC-1SHDSL-V2 supports symmetrical data rates of up to 2.3 Mbps and can be used for various applications such as high-speed internet access, VPN connectivity, and voice over IP (VoIP) services. It is commonly used in small to medium-sized businesses that require reliable and cost-effective connectivity solutions.
Specifications
Data Rate
Up to 2.3 Mbps
Line Coding
2B1Q
Annex Support
Annex A, Annex B, Annex C, Annex F
G.SHDSL Support
Yes
ITU Standard Support
ITU G.991.2 (G.SHDSL)
E1 G.SHDSL Line Coding
N/A
E1 G.SHDSL Mode Support
No
E1 G.SHDSL Annex Support
N/A
E1 G.SHDSL Compatibility
N/A
E1 G.SHDSL Maximum Reach
N/A
Symmetric DSL (SDSL) Support
Yes
ITU G.991.2 Annex A Compatibility
Yes
ITU G.991.2 Annex A Maximum Reach
6,000 ft (1,830 m)
ITU G.991.2 Annex B Compatibility
Yes
ITU G.991.2 Annex B Maximum Reach
10,000 ft (3,050 m)
ITU G.991.2 Annex C Compatibility
Yes
ITU G.991.2 Annex C Maximum Reach
10,000 ft (3,050 m)
ITU G.991.2 Annex F Compatibility
Yes
ITU G.991.2 Annex F Maximum Reach
6,000 ft (1,830 m)
