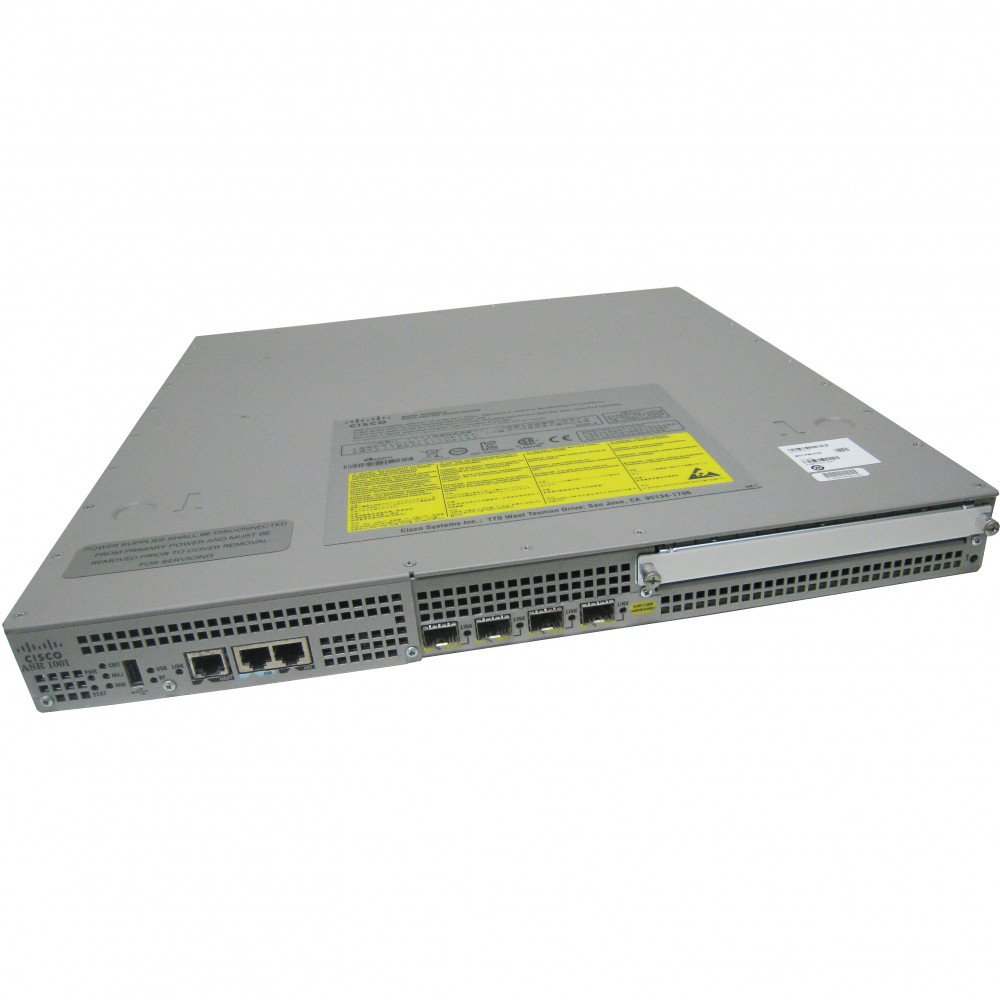

Cisco ASR1001-5G-SECK9
SR1001 VPN+FW Bundle,5G Base System, AESK9
In Stock
US $2,950.00
Product Highlights
Family
Routers
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 1-2 Days
What's Included
4GB DRAM (1x M-ASR1K-1001-4GB)
8GB Onboard Flash
(2) ASR1001-PWR-AC
(2) AC Power Cords
(1) Rackmount Kit (ASR1001-ACS)
8GB Onboard Flash
(2) ASR1001-PWR-AC
(2) AC Power Cords
(1) Rackmount Kit (ASR1001-ACS)
Twitter Reddit Facebook
Information
The Cisco ASR1001-5G-SECK9 is a router model from Cisco's ASR 1000 Series. It is designed for enterprise and service provider edge applications, offering high-performance routing, advanced security features, and scalability.
Key features of the Cisco ASR1001-5G-SECK9 include:
1. Routing Performance: It provides up to 5 Gbps forwarding capacity, making it suitable for high-speed data transmission and network connectivity.
2. Security: The "SECK9" in the model name indicates that it includes the Security (SEC) and Key (K9) features. This means it supports advanced security features such as IPsec VPN, firewall, and encryption to ensure secure data transmission.
3. Scalability: The router is designed to scale as per the network requirements, allowing for future growth and expansion.
4. High Availability: It supports redundant power supplies and control plane redundancy, ensuring high availability and minimizing downtime.
5. Modular Design: The ASR1001-5G-SECK9 has a modular design, allowing for easy integration of additional modules and interfaces to meet specific network needs.
Overall, the Cisco ASR1001-5G-SECK9 is a powerful and secure router suitable for medium to large-scale networks, providing high-performance routing and advanced security features.
Specifications
Modular
Yes
Rack Units
1
Throughput
5 Gbps
IPv6 Capable
Yes
Integrated VPN
Yes
Maximum Memory
16 GB
Maximum Routes
1000000
Redundant Fans
Yes
Maximum BGP Peers
4000
Integrated IDS/IPS
No
Maximum RIP Routes
200000
Integrated Firewall
Yes
Maximum ACL Entries
4000
Maximum IPv4 Routes
1000000
Maximum IPv6 Routes
500000
Maximum OSPF Routes
200000
Maximum VPN Tunnels
5000
Maximum Flash Memory
8 GB
Maximum QoS Policies
1000
Hot-Swappable Modules
Yes
Maximum MAC Addresses
128000
Maximum VRF Instances
1000
Maximum Bridge Domains
4000
Maximum Sub-interfaces
4000
Redundant Power Supply
Yes
Maximum Number of VLANs
4094
Maximum VLAN Interfaces
1000
Integrated Load Balancer
No
Maximum IPv4 ACL Entries
4000
Maximum IPv6 ACL Entries
2000
Maximum Multicast Routes
32000
Maximum NAT Translations
500000
Maximum Concurrent Sessions
2000000
Maximum IPv4 Routes per VRF
250000
Maximum IPv6 Routes per VRF
125000
Maximum Firewall Connections
1000000
Maximum Number of Interfaces
20
Maximum IPv4 Multicast Groups
16000
Maximum IPv4 Multicast Routes
32000
Maximum IPv6 Multicast Groups
8000
Maximum IPv6 Multicast Routes
16000
Integrated Wireless Controller
No
Maximum IPv4 Multicast Sources
16000
Maximum IPv6 Multicast Sources
8000
Maximum IPv4 Multicast RPF Groups
16000
Maximum IPv6 Multicast RPF Groups
8000
