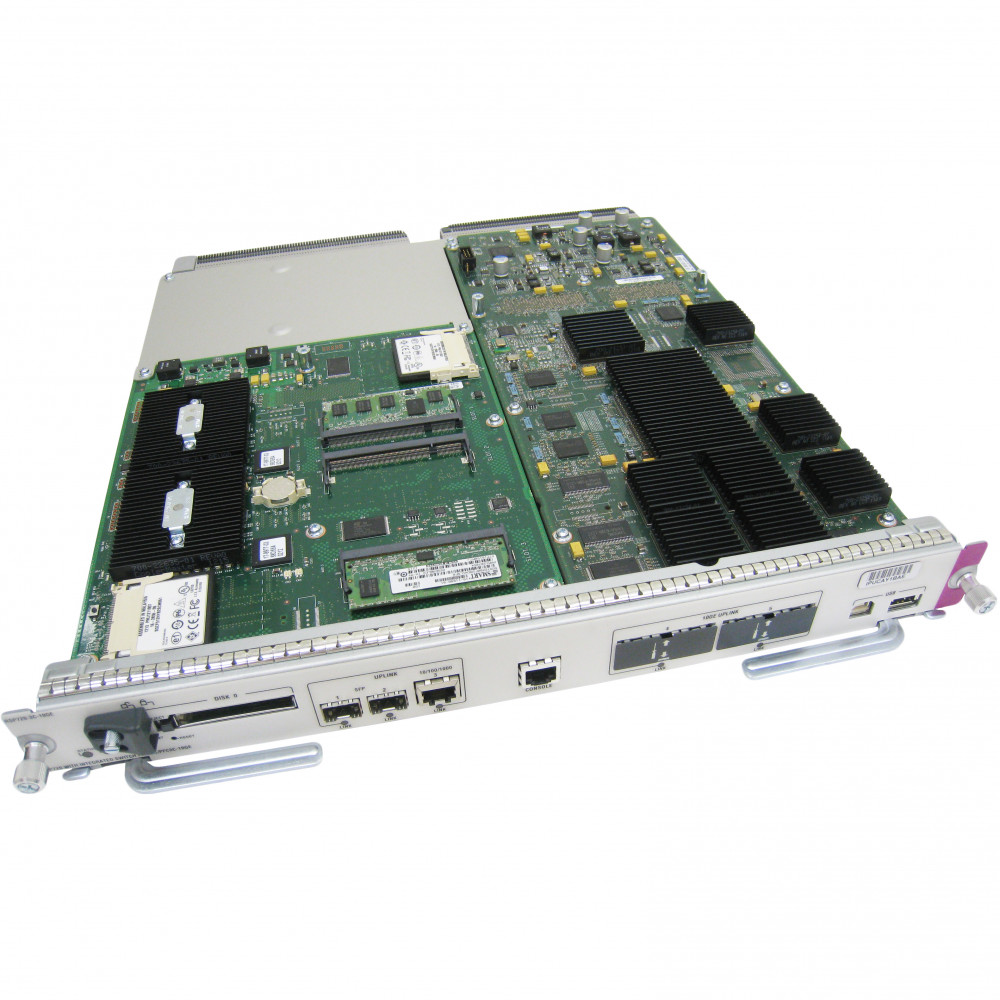

Cisco RSP720-3C-10GE
Cisco 7600 Route Switch Processor 720Gbps fabric, PFC3C, 10G
In Stock
US $875.00
Product Highlights
Family
Routers
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST
What's Included
1GB DRAM Route Processor (1x MEM-RSP720-1G)
1GB DRAM Switch Processor (1x MEM-RSP720-SP1G)
512MB Flash Route Processor (1x MEM-RSP720-CF512M)
512MB Flash Switch Processor (1x MEM-RSP720-CF512M)
1GB DRAM Switch Processor (1x MEM-RSP720-SP1G)
512MB Flash Route Processor (1x MEM-RSP720-CF512M)
512MB Flash Switch Processor (1x MEM-RSP720-CF512M)
Twitter Reddit Facebook
Information
The Cisco® 7600 Series Route Switch Processor 720 with 10 Gigabit Ethernet uplinks (RSP720-10GE) is designed to deliver the high scalability, performance, and fast convergence required for today and tomorrow's demanding voice, video, data, and mobility (quadruple-play) services. The Cisco 7600 Series RSP720-10GE (Figure 1) offers Carrier Ethernet service providers tremendous flexibility, scalability, and performance at the access or aggregation edge while deploying advanced IP video and triple-play (voice, video, and data) system applications in both the residential and business services markets. In essence, it gives service providers and enterprises true service convergence with the ability to manage a wide variety of applications over a range of access media using a single platform, the Cisco 7600 Series Routers.
Specifications
Includes
- Two X2-based 10 GE ports
- Two GE SFP ports and one 10/100/1000 gigabit port for additional flexibility
- Integrated 720-Gbps switch fabric
- PFC-3C and Multilayer Switch Feature Card (MSFC4)
- Route processor: 1- to 4-GB DRAM (1-GB default)
- Service processor: 1- to 2-GB DRAM (1-GB default)
- One external Compact Flash Type II slot
- 4-MB nonvolatile RAM (NVRAM)
- 512-MB internal boot memory (Compact Flash)
Product Overview
- Two X2-based 10 Gigabit Ethernet ports (with line rate forwarding)
- Two Gigabit Ethernet Small Form-Factor Pluggable (SFP) ports and one 10/100/1000 gigabit port for additional flexibility: This port-level flexibility allows you to position the Cisco 7600 Series at the access edge connecting with a 10 Gigabit Ethernet port uplink and a Gigabit Ethernet port uplink. The two 10 Gigabit Ethernet uplink ports help save a slot that you can use for an additional high-density Ethernet module, shared port adapter (SPA), or SPA interface processor (SIP).
- Crossbar switch fabric: The Cisco 7600 Series RSP720-10GE has a new and enhanced 720-Gbps crossbar switch fabric and the same new application-specific integrated circuit (ASIC)-based forwarding engine that is used by the Cisco RSP720. This single module delivers 40 Gbps of switching fabric capacity per slot, supporting 4-port 10 Gigabit Ethernet and 48-port 10/100/1000 density line cards.
- Standby as an independent forwarding line card: In a redundant configuration, the Cisco 7600 Series RSP720-10GE introduces the unique capability of the standby processor being able to operate as an independent distributed forwarding line card.
- Performs Layer 2 and Layer 3 forwarding
- Enforces ACL functions
- Performs QoS policing and marking
- Collects NetFlow statistics
- Offers Control Plane Policing (CoPP)
- Cisco 7600 Multilayer Switch Feature Card (MSFC4): Runs Layer 2 and Layer 3 protocols and performs all the control-plane functions.
