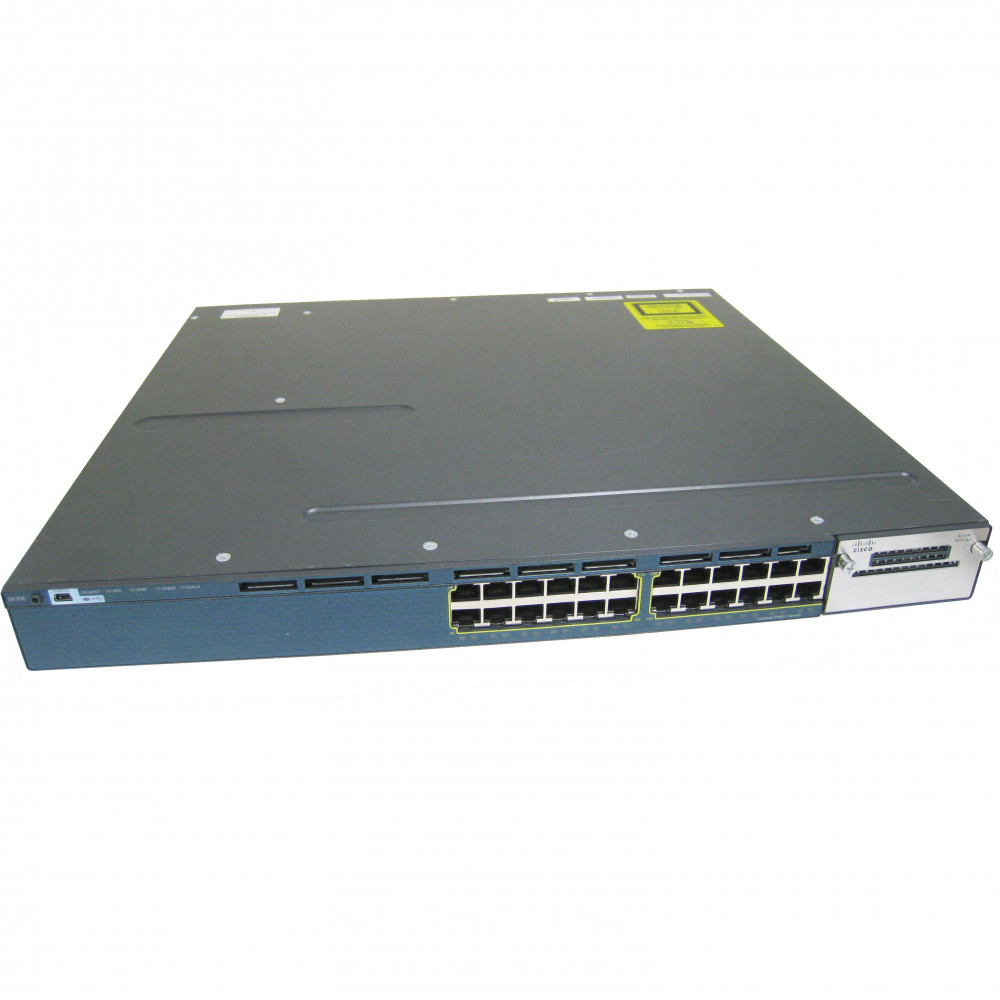

Cisco WS-C3560X-24U-S
Catalyst 3560X 24 Port UPOE IP Base
In Stock
US $690.00
Product Highlights
Family
Switches
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 2-3 Days
What's Included
(2) C3KX-FAN-23CFM
(1) C3KX-PWR-1100WAC
(1) AC Power Cord
(1) Rackmount Kit (RCKMNT-1RU)
(1) C3KX-PWR-1100WAC
(1) AC Power Cord
(1) Rackmount Kit (RCKMNT-1RU)
Twitter Reddit Facebook
Information
The Cisco WS-C3560X-24U-S is a model of Cisco Catalyst 3560-X Series Switch. It is a 24-port Gigabit Ethernet switch with four optional uplink network modules. The "U" in the model number indicates that it supports PoE (Power over Ethernet), allowing it to provide power to connected devices such as IP phones, wireless access points, and surveillance cameras. The "S" in the model number indicates that it is a standard image switch, which provides basic Layer 2 and Layer 3 features.
Specifications
Ports
24
Weight
7.6 kg
Stackable
Yes
Dimensions
- Depth
- 46 cm
- Width
- 44.5 cm
- Height
- 4.5 cm
Jumbo Frames
Yes
Maximum VLANs
4094
Forwarding Rate
101.2 Mpps
VLANs Supported
1005
Switching Capacity
160 Gbps
MAC Address Table Size
12,000 entries
Redundant Power Supply
Yes
Power over Ethernet (PoE)
Yes
Hot-Swappable Power Supplies
Yes
