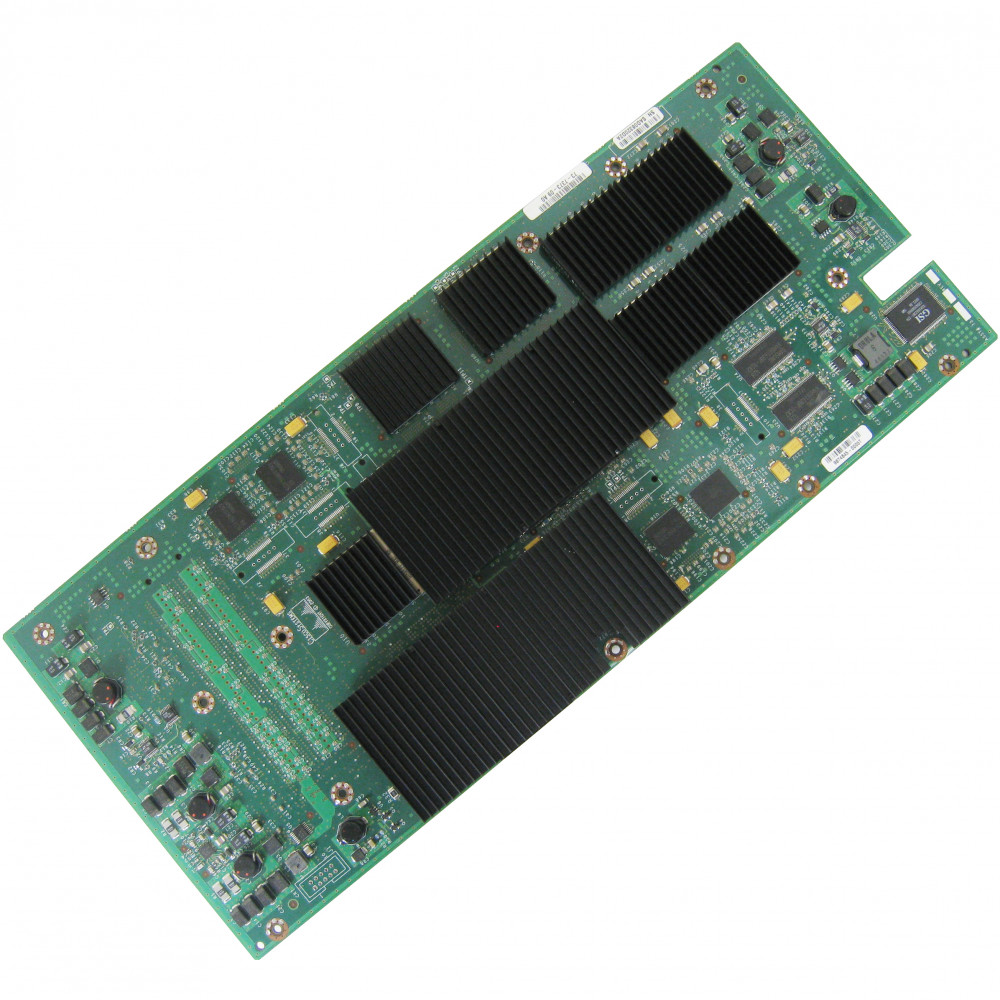

Cisco WS-F6K-PFC3A
Catalyst 6500 Sup720 Policy Feature Card-3A
In Stock
US $95.00
Product Highlights
Family
Switches
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 2-3 Days
What's Included
Mounting Screws
Twitter Reddit Facebook
Information
The Cisco WS-F6K-PFC3A is a Performance Route Processor for the Cisco Catalyst 6500 Series switches. It is a module that provides advanced routing and forwarding capabilities for the switch. The PFC3A (Policy Feature Card 3A) is responsible for processing and forwarding network traffic, as well as implementing various features and protocols such as Quality of Service (QoS), Access Control Lists (ACLs), and multicast routing. It is a crucial component for high-performance and feature-rich networking in enterprise and data center environments.
Specifications
IPv4 Support
Yes
IPv6 Support
Yes
Layer Support
Layer 2 and Layer 3
NetFlow Support
Yes
VRF-Lite Support
Yes
Supported Protocols
- Ethernet
- Fast Ethernet
- Gigabit Ethernet
Supported Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3z
- IEEE 802.3ab
Jumbo Frames Support
Yes
Hot Swappable Modules
Yes
MAC Address Table Size
32,000 entries
Maximum Number of VLANs
4,094
Multicast Routing Support
Yes
Hardware-based ACL Support
Yes
Virtual LAN (VLAN) Support
Yes
Maximum Number of IPv4 Routes
256,000
Maximum Number of IPv6 Routes
128,000
Maximum Number of QoS Policies
32,000
Redundant Power Supply Support
Yes
Maximum Number of EtherChannels
256
Quality of Service (QoS) Support
Yes
Maximum Number of NetFlow Entries
256,000
Power over Ethernet (PoE) Support
No
Maximum Number of Multicast Routes
16,000
Redundant Supervisor Engine Support
Yes
Maximum Transmission Unit (MTU) Size
Up to 9216 bytes
Spanning Tree Protocol (STP) Support
Yes
Maximum Number of Spanning Tree Instances
30
Maximum Number of Access Control Entries (ACEs)
128,000
Maximum Number of Virtual Routing and Forwarding (VRF) Instances
1,000
