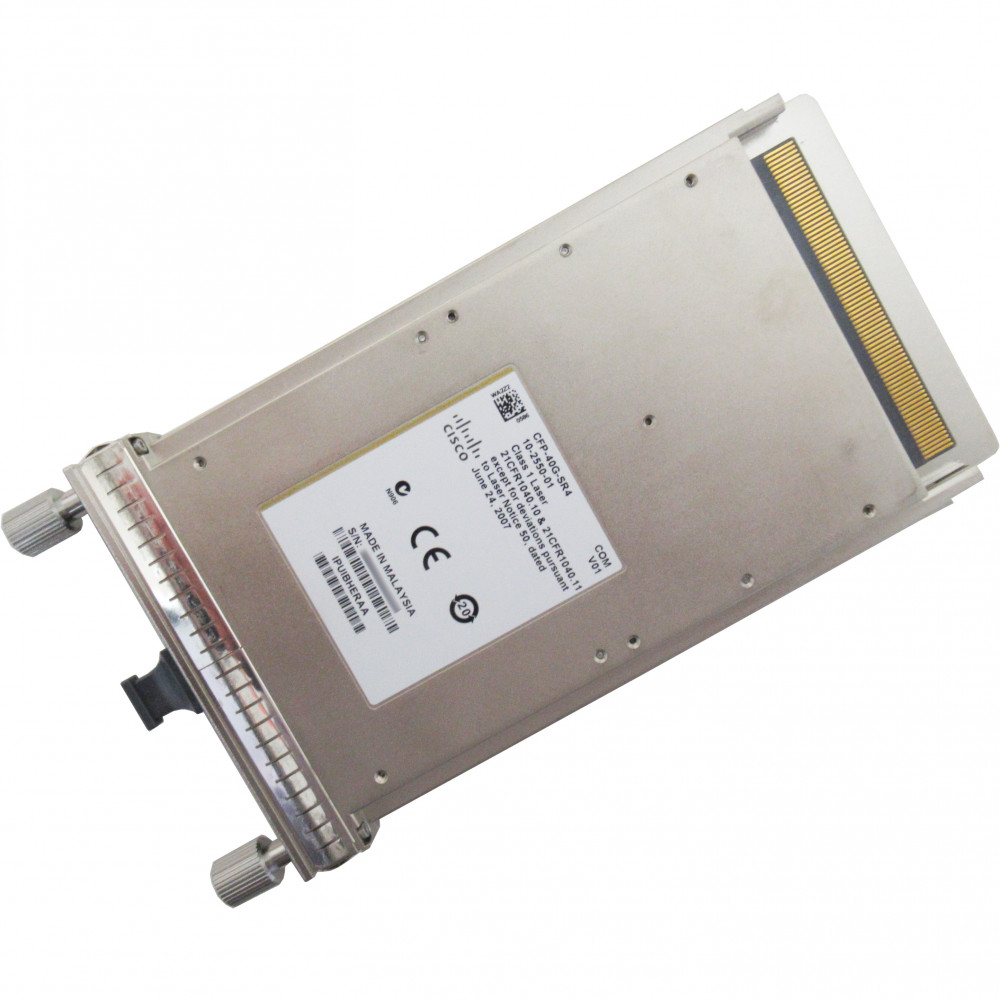

Cisco CFP-40G-SR4
40GBASE-SR4 CFP Module with MPO connector, Original Cisco
In Stock
US $600.00
Product Highlights
Family
Transceivers
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST
Twitter Reddit Facebook
Information
The Cisco CFP-40G-SR4 is a hot-pluggable transceiver module designed for use in high-speed data communication networks. It is part of the Cisco 40 Gigabit Ethernet (40G) transceiver family and supports a maximum data transfer rate of 40 gigabits per second (Gbps).
The "SR4" in the product name stands for "short reach" and indicates that the transceiver is designed for short-range optical connections. It uses a multi-mode fiber optic cable with an MPO/MTP connector and supports a maximum link distance of up to 100 meters.
The CFP-40G-SR4 transceiver is commonly used in data centers and other high-performance computing environments where high-speed and high-bandwidth connections are required. It is compatible with various Cisco networking devices and provides reliable and efficient connectivity for demanding applications.
Specifications
Data Rate
40 Gbps
Fiber Type
Multimode
Wavelength
850 nm
Form Factor
CFP
Hot Swappable
Yes
Connector Type
MPO/MTP
Maximum Distance
100 meters
Power Consumption
20W
OTN Mapping Support
No
Supported Platforms
- Cisco ASR 9000 Series
- Cisco Nexus 7000 Series
- Cisco CRS-X Carrier Routing System
Supported Protocols
- Ethernet
- Fibre Channel
- OTN
Ethernet Compatibility
40GBASE-SR4
Operating Temperature Range
0°C to 70°C
Digital Optical Monitoring (DOM) Support
Yes
