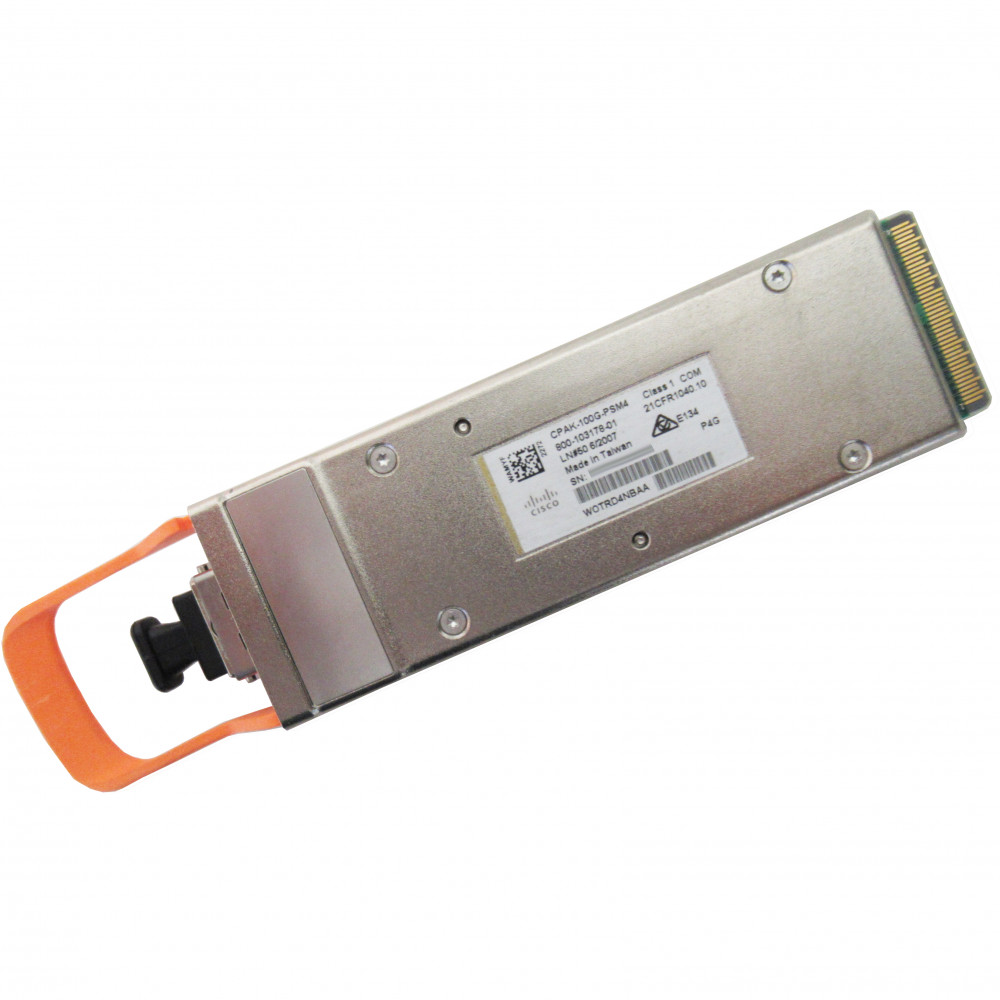

Cisco CPAK-100G-PSM4
CPAK optical transceiver module, PSM4 500m SMF, parallel, Original Cisco
In Stock
US $10,500.00
Product Highlights
Family
Transceivers
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 3-4 Days
Twitter Reddit Facebook
Information
The Cisco CPAK-100G-PSM4 is a high-speed optical transceiver module designed for use in 100 Gigabit Ethernet (100GbE) networks. It uses parallel single-mode fiber (PSM4) technology to transmit and receive data at a rate of 100 Gbps over four separate optical lanes. The module is hot-swappable and can be used in various Cisco networking devices, such as switches and routers, to provide high-bandwidth connectivity for data centers and other high-performance networking environments.
Specifications
Duplex
Full
Data Rate
100 Gbps
Fiber Type
Single-mode
Wavelength
1310 nm
Form Factor
CPAK
Max Distance
500 meters
Compatibility
Cisco 100G CPAK ports
Hot Swappable
Yes
Power Consumption
12.5W
Receiver Overload
No
Transmitter Fault
No
Optical Components
4x 25G DFB lasers
Loss of Signal (LOL)
No
Loss of Signal (LOS)
Yes
Optical Connectivity
4x 25G parallel
Receiver Sensitivity
-10.6 dBm
Transmitter Output Power
0.5 to 4 dBm
Operating Temperature Range
-5°C to 70°C
Digital Diagnostics Monitoring (DDM)
Yes
Digital Optical Monitoring (DOM) Support
Yes
