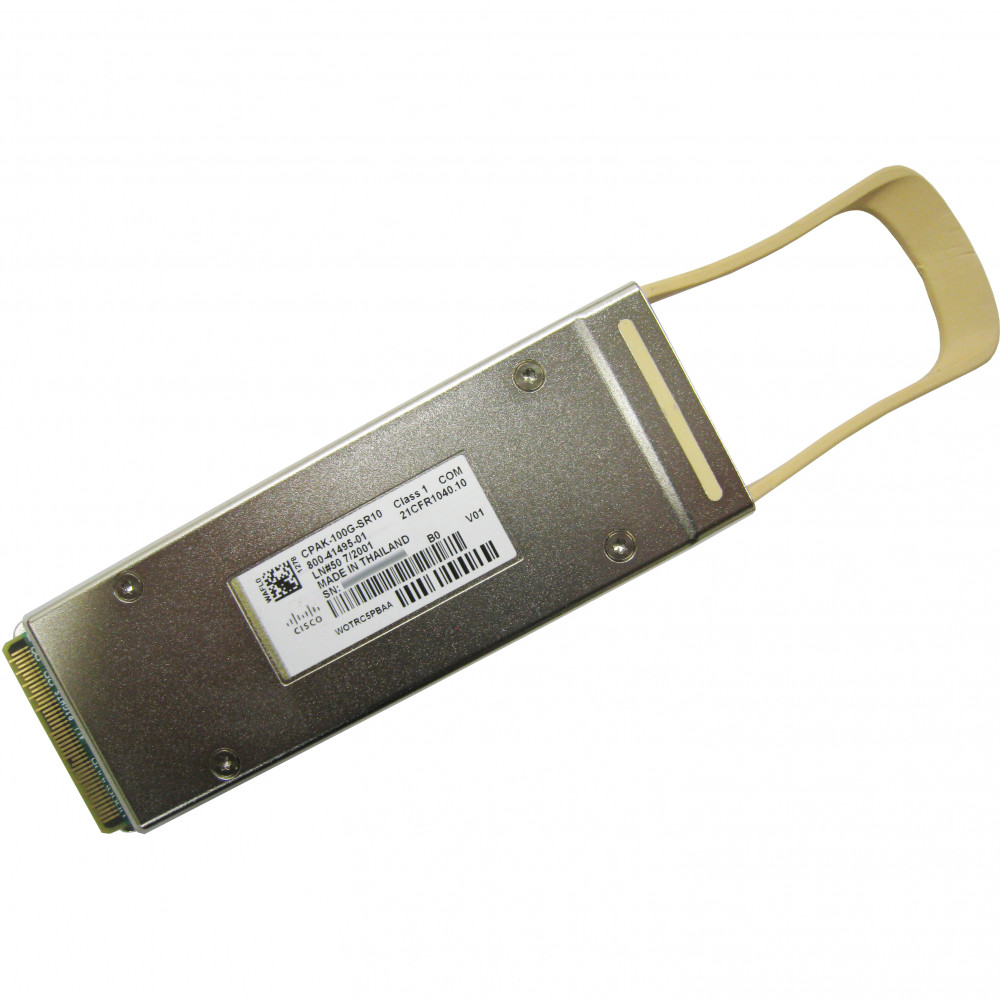

Cisco CPAK-100G-SR10
CPAK-100G-SR10 Transceiver module, 100m OM3 MMF, Original Cisco
In Stock
US $80.00
Product Highlights
Family
Transceivers
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST
Twitter Reddit Facebook
Information
The Cisco CPAK-100G-SR10 is a high-speed pluggable transceiver module designed for use in Cisco networking equipment. It supports 100 Gigabit Ethernet (100G) connectivity and uses a 24-fiber MPO/MTP connector for multimode fiber optic cables. The "SR10" in the name refers to its compatibility with short-range transmission distances of up to 100 meters. This transceiver module is commonly used in data centers and high-performance computing environments to provide fast and reliable network connectivity.
Specifications
Duplex
Full
Data Rate
100 Gbps
Fiber Type
Multimode
Wavelength
850 nm
Form Factor
CPAK
Max Distance
100 meters
Hot Swappable
Yes
Connector Type
MPO-24
Power Consumption
20W
Supported Protocols
- Ethernet
- Fibre Channel
- InfiniBand
Operating Temperature Range
0 to 70 degrees Celsius
Digital Optical Monitoring (DOM) Support
Yes
