Cisco DWDM-XFP-C

10G MultiRate C Band Tunable DWDM XFP, Original Cisco

In Stock
US $400.00
Add to cart Make offer
Product Highlights
Family
Transceivers
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST


Twitter Reddit Facebook

Information

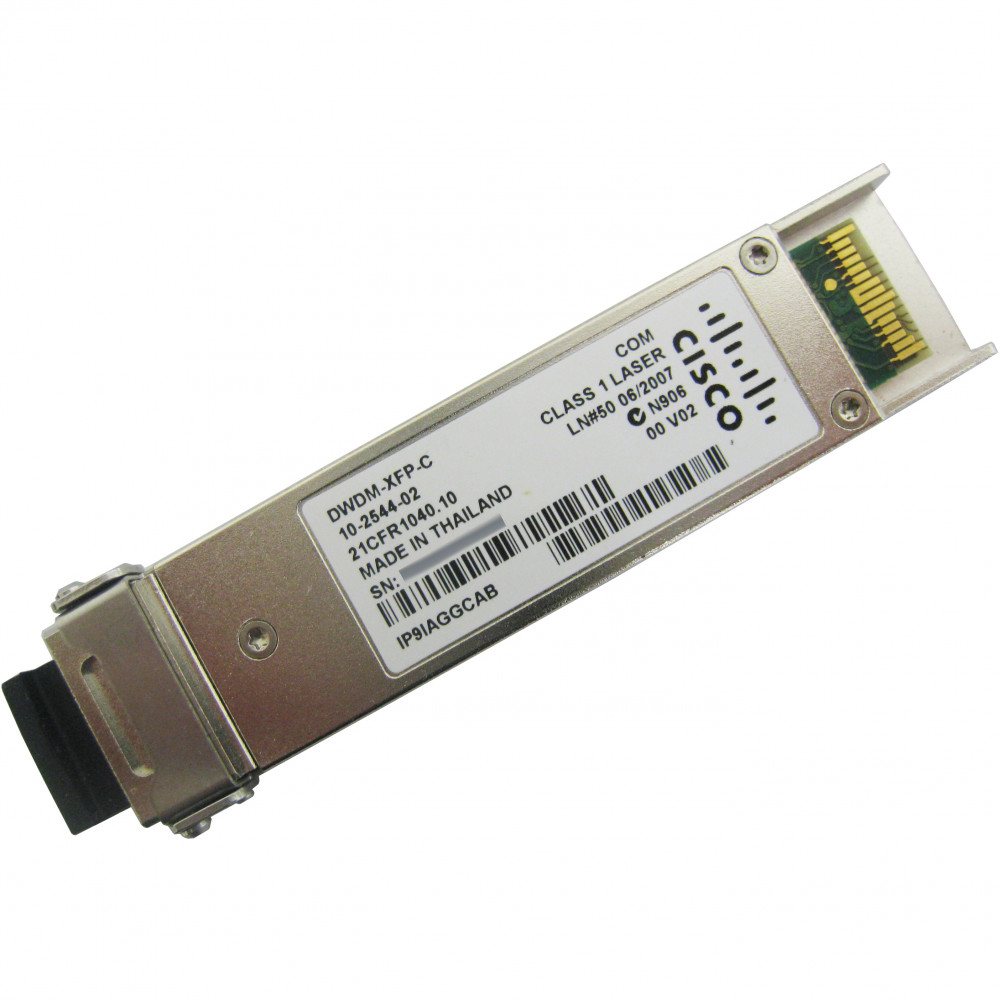

The Cisco DWDM-XFP-C is a Cisco Dense Wavelength-Division Multiplexing (DWDM) XFP transceiver module. It is designed to provide high-speed optical connectivity for Cisco networking devices. The DWDM-XFP-C module supports the transmission of data over long distances by utilizing multiple wavelengths of light on a single optical fiber. It operates at a data rate of 10 Gbps and supports the ITU-T G.694.1 wavelength grid. The module is hot-swappable and can be easily inserted or removed from compatible Cisco devices.

Specifications

Duplex
Full
Data Rate
10 Gbps
Wavelength
C-Band (100 GHz ITU grid)
Form Factor
XFP
Link Budget
23 dB
Hot-Pluggable
Yes
Supported Protocols
  • 10 Gigabit Ethernet
  • 10G Fibre Channel
  • SONET/SDH
Dispersion Tolerance
1000 ps/nm
Receiver Reflectance
-14 dB
Receiver Sensitivity
-14.5 dBm
Supported Fiber Types
  • Single-Mode Fiber (SMF)
Transmission Distance
Up to 80 km
Dispersion Compensation
No
Transmitter Output Power
0 to 5 dBm
Operating Temperature Range
-5°C to 70°C
FEC (Forward Error Correction)
Yes
OTN (Optical Transport Network) Support
Yes
Digital Optical Monitoring (DOM) Support
Yes
