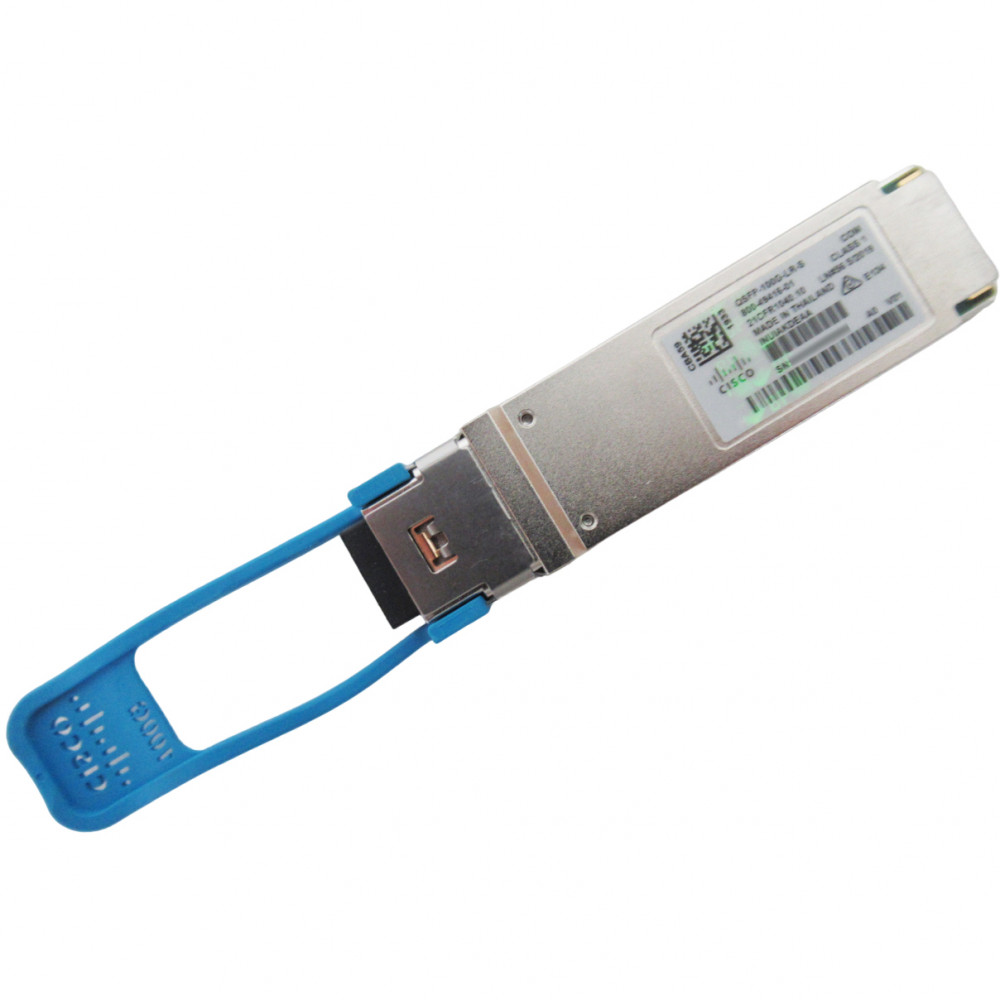

Cisco QSFP-100G-LR-S
100G QSFP28 100G-LR, 10km SMF, duplex, LC Connector, Original Cisco
In Stock
US $850.00
Product Highlights
Family
Transceivers
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships within 2-3 Days
Twitter Reddit Facebook
Information
The Cisco QSFP-100G-LR-S is a transceiver module designed for high-speed data transmission over optical fiber networks. It is part of the Cisco family of 100 Gigabit Ethernet (100G) transceivers and is compliant with the QSFP28 Multi-Source Agreement (MSA).
The "QSFP" stands for Quad Small Form-factor Pluggable, indicating that it is a compact and hot-pluggable module. The "100G" denotes its capability to transmit data at a rate of 100 Gigabits per second. The "LR" stands for Long Reach, indicating that it is designed for long-distance transmission. The "S" signifies that it is a single-mode fiber transceiver.
The Cisco QSFP-100G-LR-S is commonly used in data centers, telecommunications networks, and other high-bandwidth applications where long-distance transmission is required. It supports a maximum link length of up to 10 kilometers (6.2 miles) over single-mode fiber.
Specifications
Data Rate
100 Gbps
Wavelength
1310 nm
Form Factor
QSFP28
Hot Swappable
Yes
Connector Type
LC duplex
Power Consumption
4.5W
Max Cable Distance
10 km
Operating Temperature Range
-5°C to 70°C
Multi-Mode Fiber (MMF) Support
No
Single-Mode Fiber (SMF) Support
Yes
OTN/FEC (Forward Error Correction)
Yes
Digital Optical Monitoring (DOM) Support
Yes
