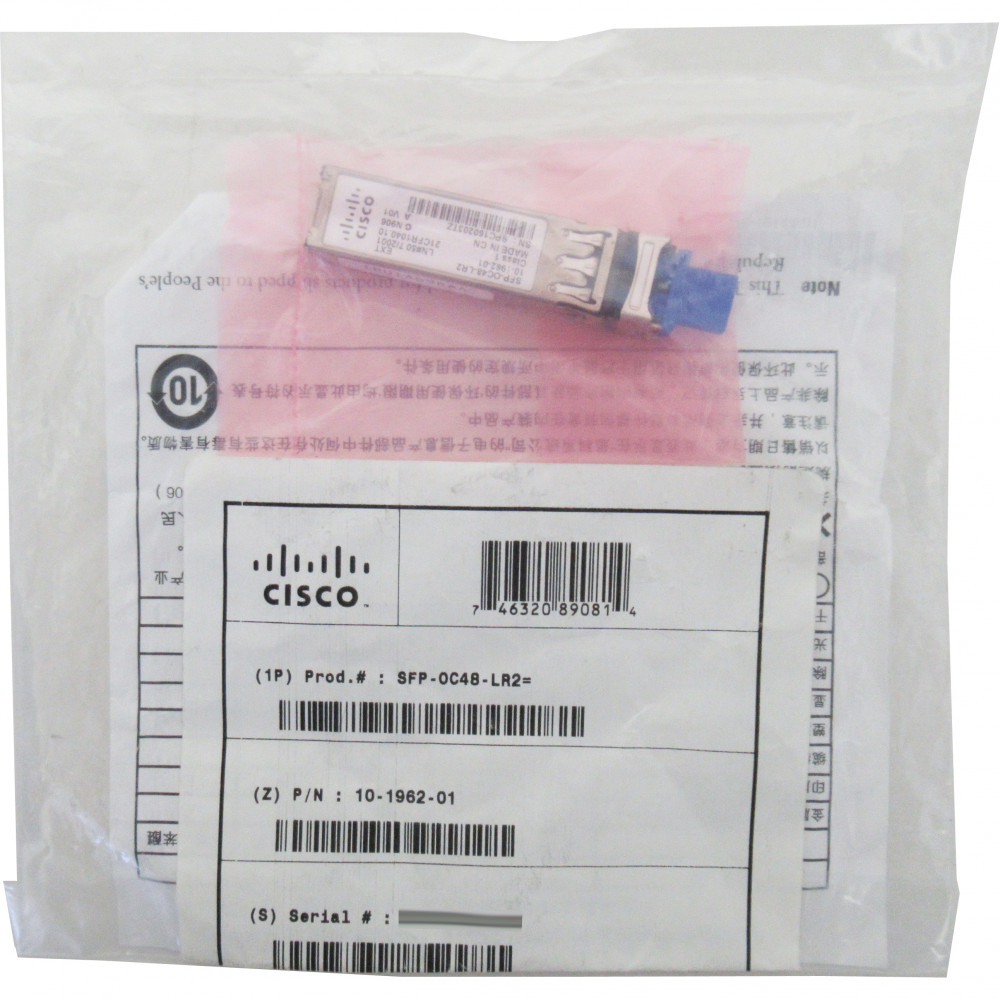

Cisco SFP-OC48-LR2
OC-48c/STM-16c SFP, Long Reach (80km), Original Cisco
In Stock
US $200.00
Product Highlights
Family
Transceivers
Brand
Cisco
Warranty
Lifetime (see details)
Availability
Usually Ships Same Day if Ordered by 1PM PST
Twitter Reddit Facebook
Information
The Cisco SFP-OC48-LR2 is a Small Form-Factor Pluggable (SFP) transceiver module designed for use in optical communication networks. It is specifically designed for OC-48/STM-16 (Optical Carrier level 48/Synchronous Transport Module level 16) applications, which provide high-speed data transmission over optical fibers.
The "LR2" in the product name stands for "Long Reach 2," indicating that this SFP module is capable of transmitting data over long distances. It supports a maximum link length of up to 80 kilometers (approximately 50 miles) using single-mode fiber.
The Cisco SFP-OC48-LR2 module operates at a wavelength of 1550 nm and supports a data transfer rate of 2.488 Gbps (Gigabits per second). It is compatible with various Cisco networking devices and can be used for applications such as high-speed data transmission, telecommunications, and networking infrastructure.
Specifications
Duplex
Full
Data Rate
2.488 Gbps
Fiber Type
Single-mode
Wavelength
1550 nm
Max Distance
80 km
Compatibility
Multi-Source Agreement (MSA) compliant
Hot Swappable
Yes
Connector Type
LC
Cisco IOS Software Support
Yes
Operating Temperature Range
-5°C to 70°C
Digital Optical Monitoring (DOM) Support
Yes
